THOR LAWSON'S
VINTAGE and EVOLUTION SUSPENSION PRODUCTS

ESP is an authorized vendor of Fox vintage decals that are no longer in production.  The Fox Head and Fox Tail are registered trade marks of Fox Head Inc and Fox Racing Inc.  Use, copy, sale, reproduction or publication in any form whether by decals, manuals, apparel or any other products without written permission of Fox Head Inc and Fox Racing Inc is forbidden by law and may lead to legal action.

FOX SHOX PARTS
AKA: Fox Gas Shox
(Introduced in 1975)

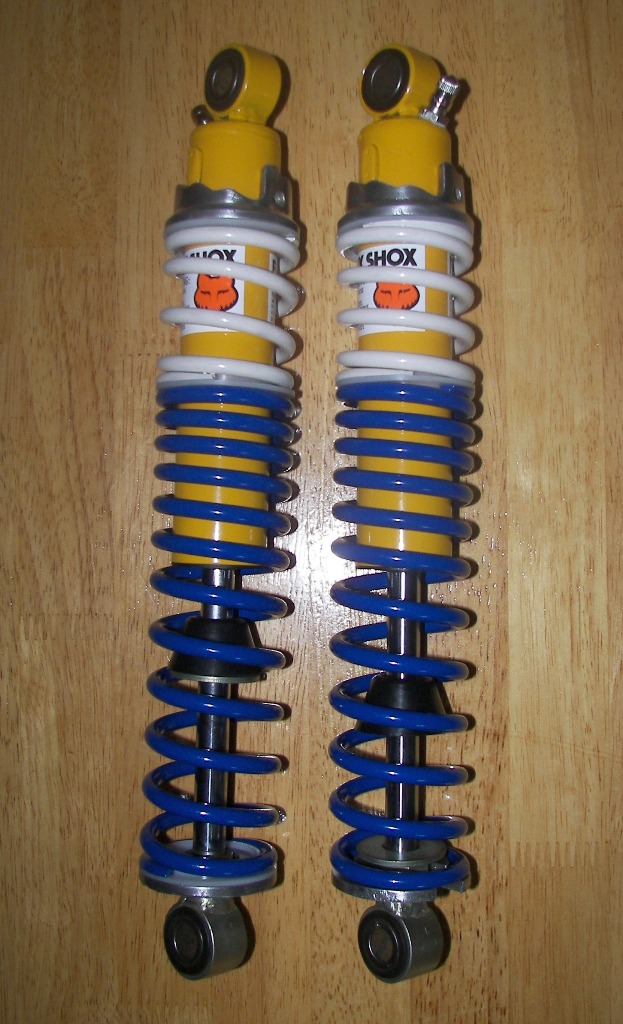

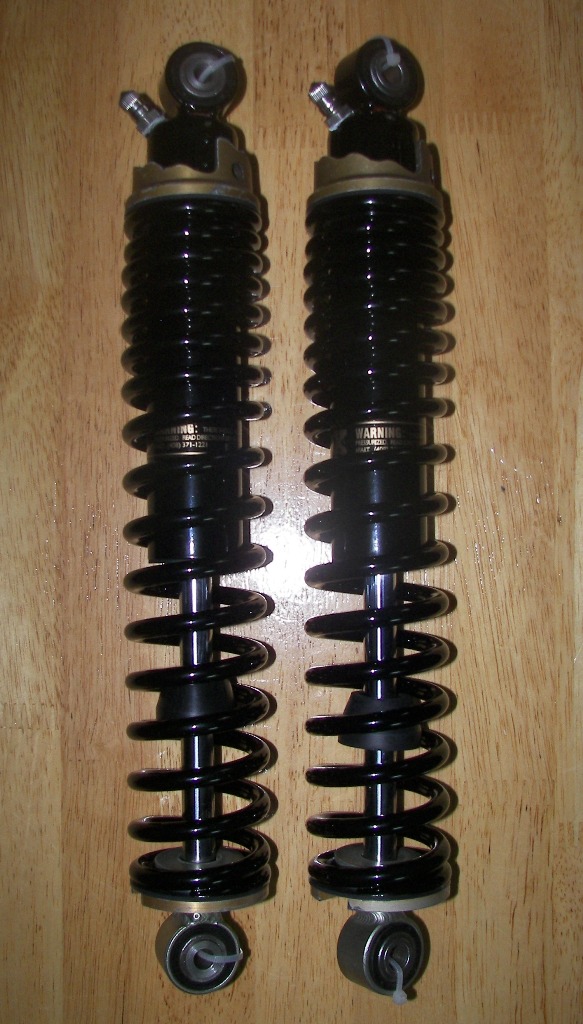

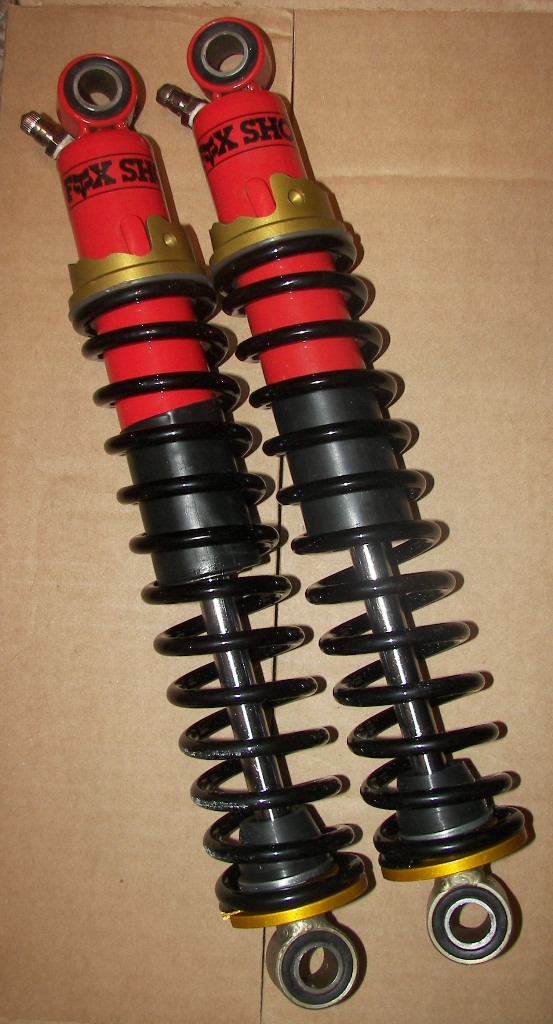

Left to Right: Original with Dual Springs, with Remote Reservoir Kit, Black Street, Custom RM Application, Red/Black/Gold Street

Early version Jetted Shafts coming soon.
****Springs are available on an per order basis, contact for information.****

Pressure: 200 psi for Off-Road, 100 psi for Road and Trials, Oil: 5wt fork or shock fluid, level is 1/4" below lower snap ring groove or 1-1/4" below lip of body with shaft fully inserted on non-reservoir models.  Level is critical, to much oil will result in blowing the sealhead out and damage to the head and body.  When fitted with remote reservoirs, disregard oil level and fill shock to capacity.  Body O.D. is app. 1.450".

SLR and straight Spring Rate Calculator


FOX SHOX MANUAL, two versions in one, for the original steel body emulsion shock, covers early jetted shafts and later non-jetted shim valve shafts, 41 pages of information and specs, #909-401,  $13.00


Decal Set:
FOX SHOX REBUILD PACKAGE - includes Seal Kit, Decal Set, and the Manual at 50% off.  #909-410A $44.50 to $53.50
Which Decal Set to use: Original FoxHead usually used on Off-Road versions with at least 1" of body space between the spring and eyelet, Black on Clear for Red Bodies used on Trials and Off-Road versions with turning spring preload adjusters, Gold on Clear is used on Road versions with Black Bodies.

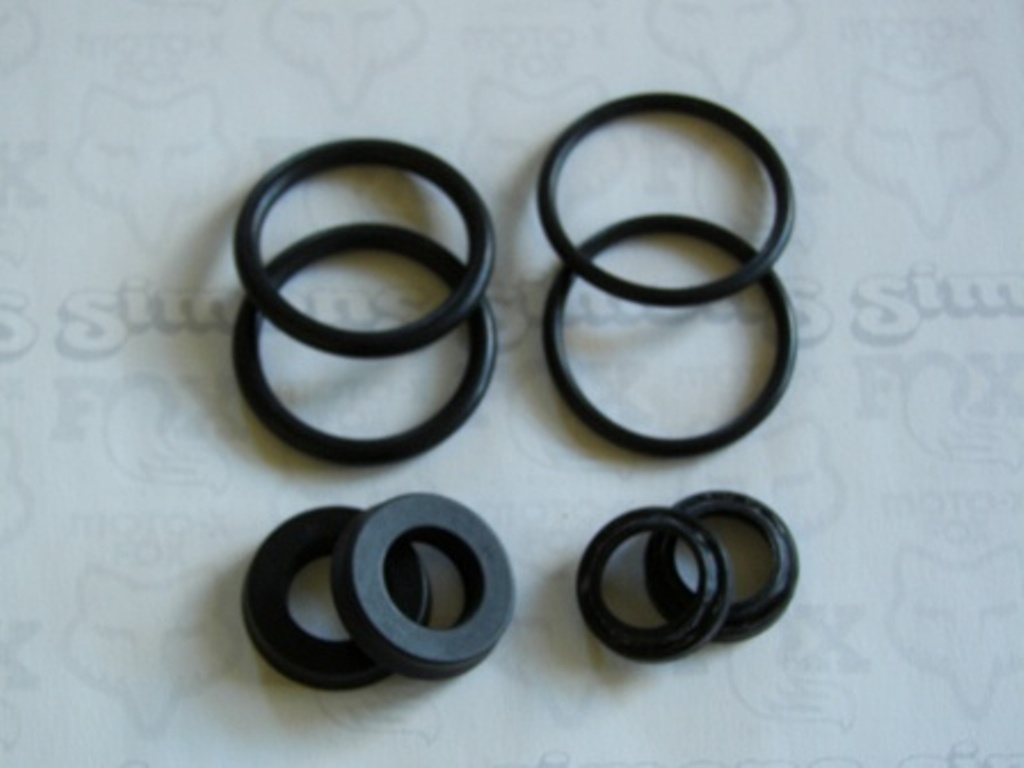

FOX SHOX SEAL KIT, with or without reservoir, the original spring over, steel body emulsion shock for dirt or road - Complete Set for a pair, includes 2 Wipers, 2 Seals, 4 (2 spares in case you pinch one) Seal Cap O-rings (thin), 2 Bearing O-rings (thick). (Fox #38-9000) #909-410 $29.00


FOX SHOX DECALS, off-road versions, if bodies have less then 1" of space above spring retainer, use the narrow versions below, Set of 4, #999-430 $18 set  OUT of STOCK


FOX SHOX DECALS,  Trials and Road Shox version with red bodies, turn preload adjuster, Black on clear, Set of 2, #FGS-431 $9 set

FOX SHOX DECALS, Trials and Road Shox version with black bodies, turn preload adjuster, Gold on clear, Set of 2, #FGS-432 $9 set


REMOTE RESERVOIR KIT, for Original Fox Shox Only, complete with cylinders, end caps, end cap orings, air valves, bladders (uses short AirShox bladders), choice of 12", 14", 16", 18" stainless steel braided lines, longer lines by request, mounting hardware not included, #38-5000, $259 set


NEW!!!  Reservoir Mount Rubber, size Small, #919-324 $12 each, (NOTE: 2x per reservoir cylinder required for stable installation, order 4x for complete set, hose clamps not included.)


Shaft Seal Bullet for 1/2" Original Fox Shox Only, for placing main seal onto shaft, remove before installing seal-head assembly with wiper, #909-915, $29 each


The following shafts are for the later model with shim valving and no jet on the end of the shaft. Installation of bronze bearing repair sleeve or new bearing highly recommended, wear limit of bearing is 0.504".
Note on shafts, measure the actual length to ensure ordering the correct size.  Actual length of shock is not a good indicator of shaft length due to use of extended eyelets.

FOX SHOX SHAFT by RCM, late version without jets, 13 inch, actual length is app. 6-7/8", #38-1033 $75 each CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

 FOX SHOX SHAFT by RCM, late version without jets, 13-1/2 inch, actual length is app. 7-1/8", #38-1034 $75 each CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

 FOX SHOX SHAFT by RCM, late version without jets, 14-1/4 inch, actual length is app. 7-1/2", #38-1035 $75 eachCURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

 FOX SHOX SHAFT by RCM, late version without jets, 15-1/2 inch, actual length is app. 8-1/8", #38-1036 $75 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

 FOX SHOX SHAFT by RCM, late version without jets, 17-1/2 inch, actual length is app. 9-1/8", #38-1037 $75 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.


The following shafts are for the early model with a jet on the end of the shaft. Installation of bronze bearing repair sleeve or new bearing highly recommended, wear limit of bearing is 0.504".
Note on shafts, measure the actual length to ensure ordering the correct size.  Actual length of shock is not a good indicator of shaft length due to use of extended eyelets.

 CURRENTLY ON BACKORDER. FOX SHOX SHAFT by RCM, early version with jets, 13-1/2 inch, actual length is app. 7-1/8", #38-0034 $75 each (note: I can turn down for shorter 13" to 12" version)

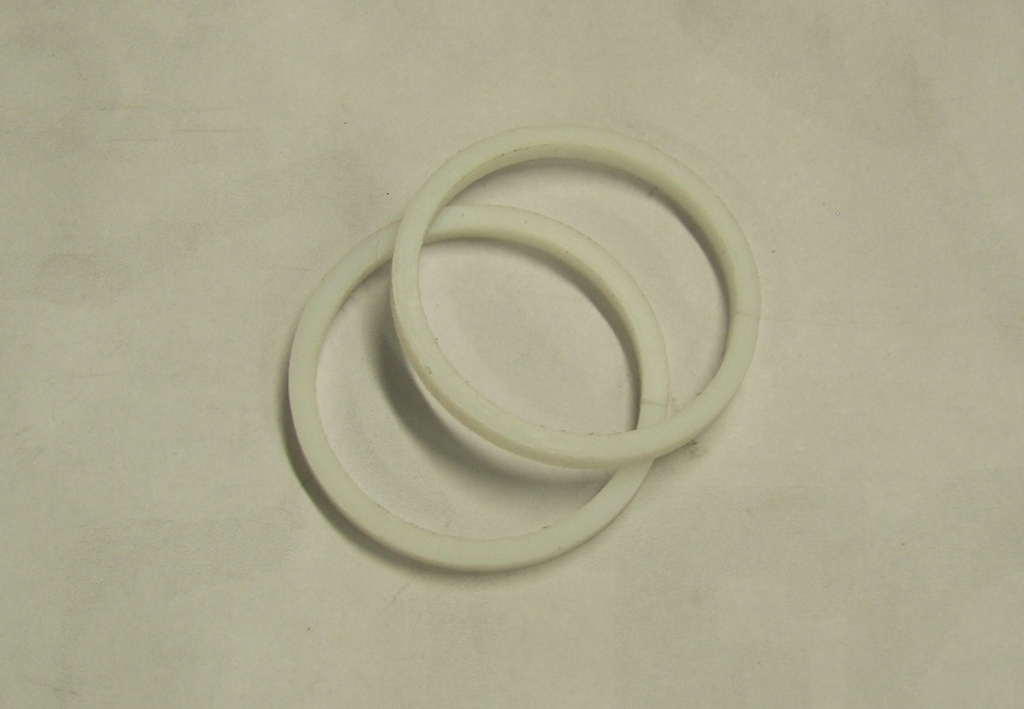

PISTON RING SET, EARLY NARROW VERSION PISTONS,  used in both shaft versions, wear limit OD is 1.300", narrow 2mm height, improved over OEM with long-lasting Teflon PTFE,  #38-0071 (Early Narrow) $35.00 pair  OUT of STOCK

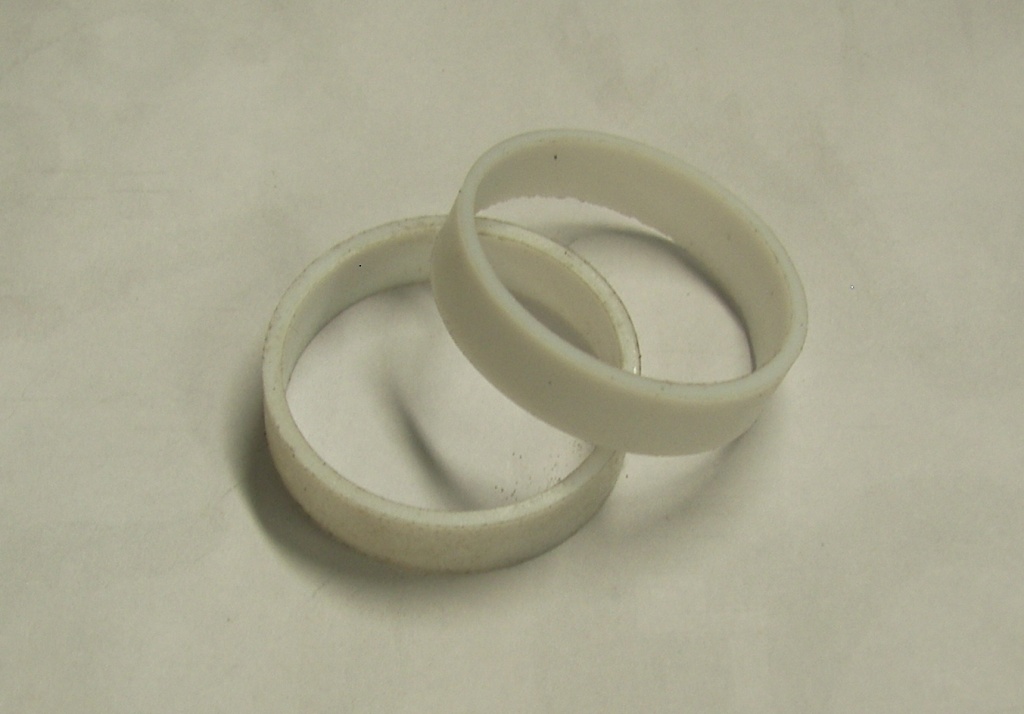

PISTON RING SET, LATE WIDE VERSION PISTONS, used in both shaft versions,  wear limit OD is 1.300", wide 7.5mm height, improved over OEM with long-lasting Teflon PTFE,  #38-0073 (Late Wide) $35.00 pair  OUT of STOCK

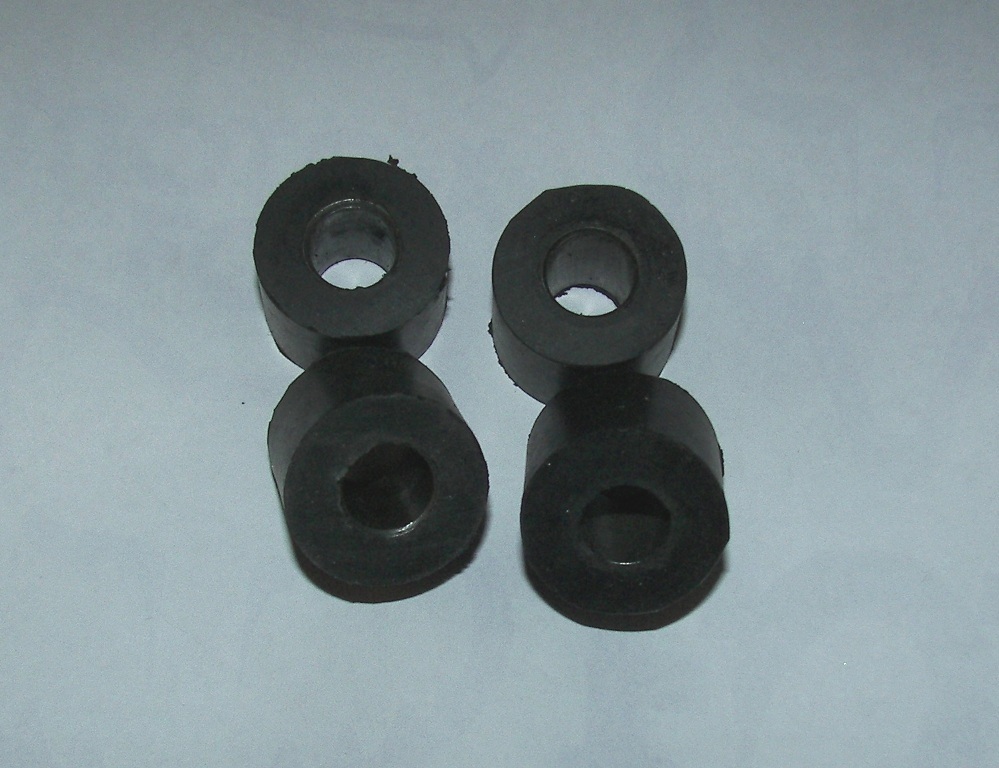

MOUNT BUSHING with steel insert,12mm ID,  very difficult to install as the OD is 1mm larger then ID of mounts,  #38-0120 $12 each

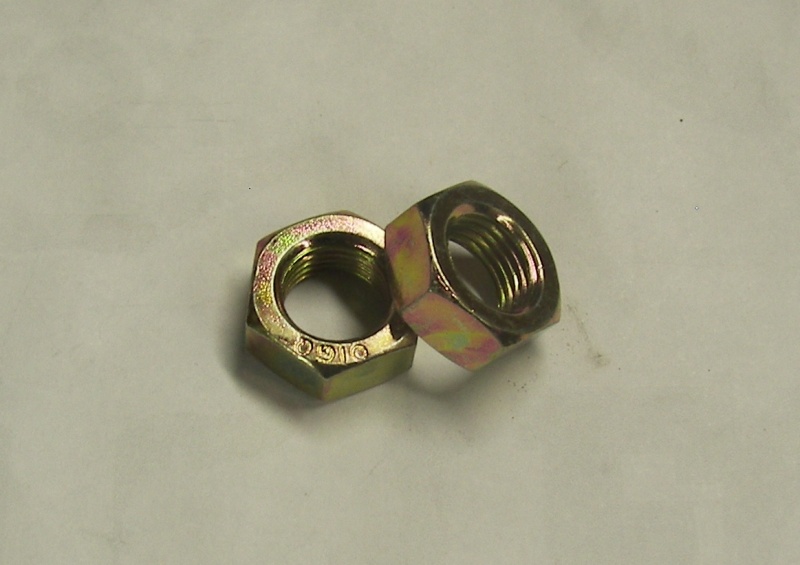

LOWER MOUNT JAM NUT SET,  zinc plated,  #38-0130 $2.50 pair


Spring Retainer, Eyelet End,  from RCM,  #38-0150 $16.95 each


Spring Retainer, Body End,  from RCM,  #38-0200 $13.50 each


Body Snap Ring Outer, stainless steel,  Set of 2, #38-0210-SS $15.00 pair


Body Snap Ring Outer, black oxide finish,  Set of 2, #38-0210-BO $5.00 pair


SPRING RETAINER SET,  Complete Set for a pair, includes 4 spring end retainers and 2 guides for dual springs, white Nylon, stronger & slightly thicker then the original plastic units.  (Fox #38-0310&20) #38-0330 $36.00 set

 SPRING END RETAINER,  #38-0310 $7.00 each

 SPRING GUIDE,  #38-0320 $8.00 each


SPRING RETAINER SET for Black Street Shoxs,  Complete Set for a pair, includes 4 spring end retainers and 2 guides for dual springs, black Nylatron, stronger & slightly thicker then the original plastic units.  (Fox #38-0310&20) #38-0330-B $42.00 set

 SPRING END RETAINER,  #38-0310-B $8.00 each

 SPRING GUIDE,  #38-0320-B $9.00 each


Size:
Fox Shox Jets, # 78, 80, 82, 84, 86, 88,   Select size in box.  Set of 2, #909-478$13.00 pair

Select Color:

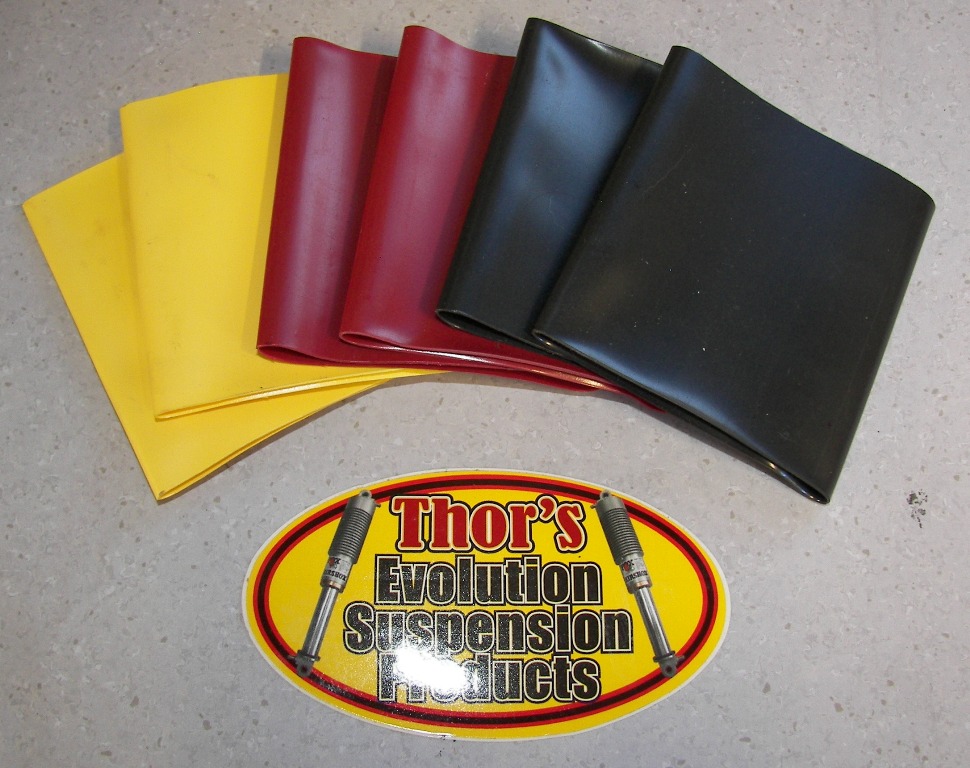

Body Wrap, PVC heat-shrink wrap for bodies of single spring versions typically used on Street and Trials Shoxs, heat gun required, 3" length, 0.05" thick, install preload adjuster and plastic spring guide onto body first, they will not slide over the wrap, place wrap around body with 1/2" sticking past end, heat on low going around body evenly, trim off excess, can be installed after Shox is rebuilt and assembled if done on Low setting,  #909-413, 414, 415$6 pair


Body Cap, black replacement for the white sealhead covers, Set of 2, #38-0270 $20.00 pair  (The material has more flexibility and higher impact rating then white nylon, it is less likely to break during installation and future removal)


FGS Top Out Bumper

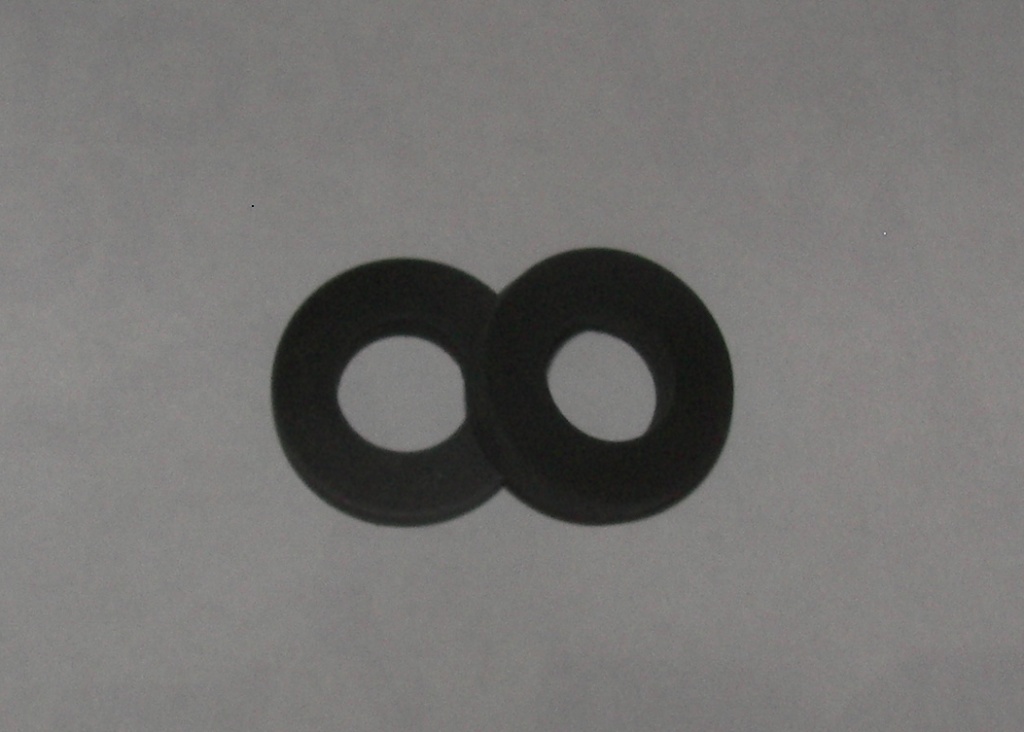

Internal Top Out Bumper, used on late version non-jetted shafts only, Set of 2, #38-0100 $14.00 pair

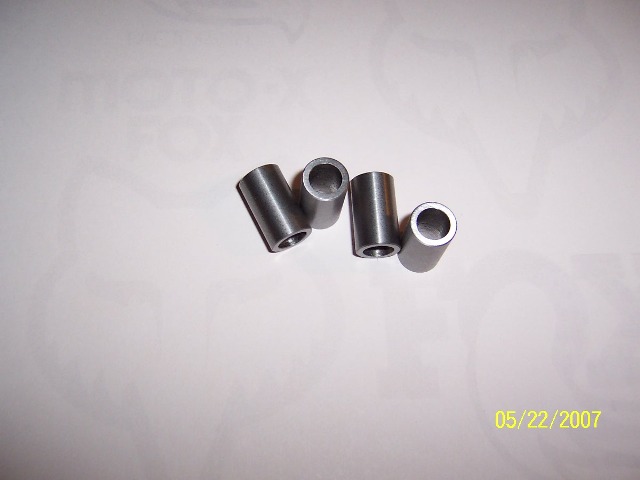

Shock Mount Reducer, for 12mm ID rubbers to 8mm bolts, 4130 Steel, Set of 4, (Fox #38-0290) #909-471 $28.00 set

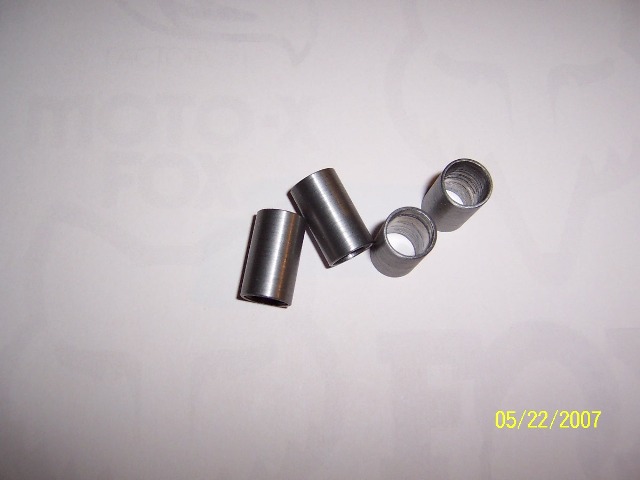

Shock Mount Reducer, for 12mm ID rubbers to 10mm bolts, 4130 Steel, Set of 4, (Fox #38-0280) #909-473 $28.00 set


Bottom Out Bumpers, 3/4" hgt., OEM Reproduction, Set of 2, #909-402,  $30 pair



Bottom Out Bumpers, 1-1/4" hgt., Set of 2, #909-487 $36 pair

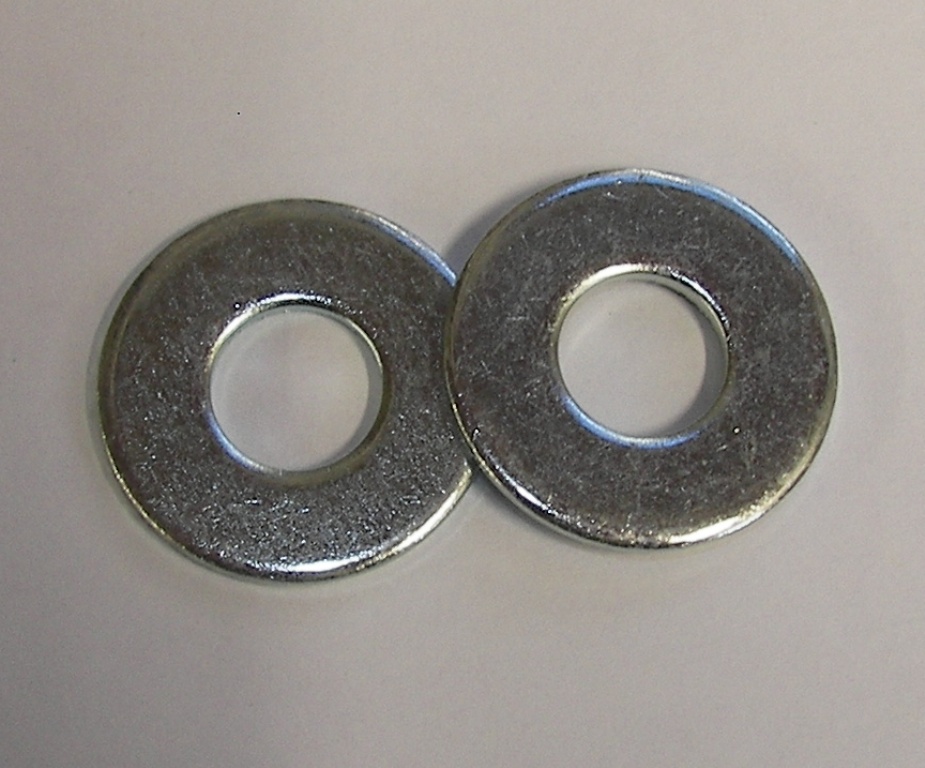

Bumper Washer Set, zinc plated, Set of 2, #38-0140 $5 pair



Seal Cap Retaining Ring, zinc plated,  Set of 2, #38-0231 $4.00 pair



Piston Retaining Ring, for early jetted shafts, black phosphate coated,  Set of 2, #38-0230 $3.00 pair

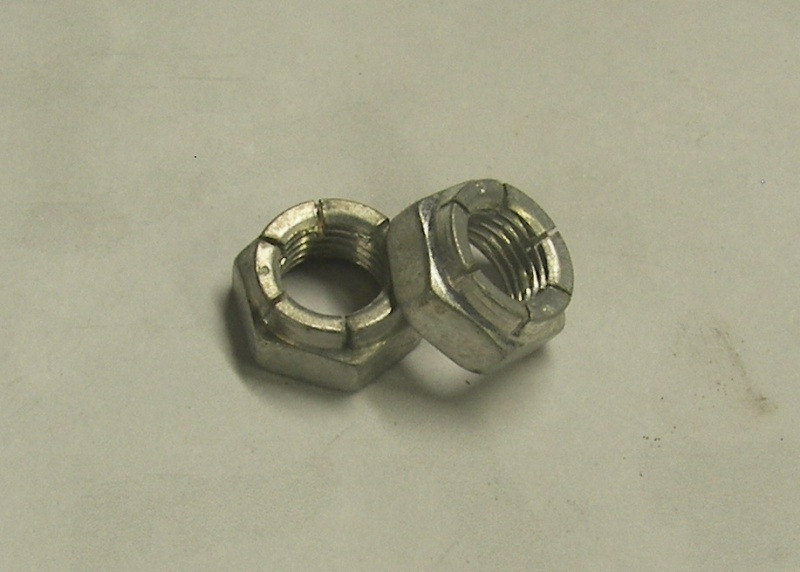

Piston Locknuts, cad plated,  Set of 2, #38-0250 $4.00 pair

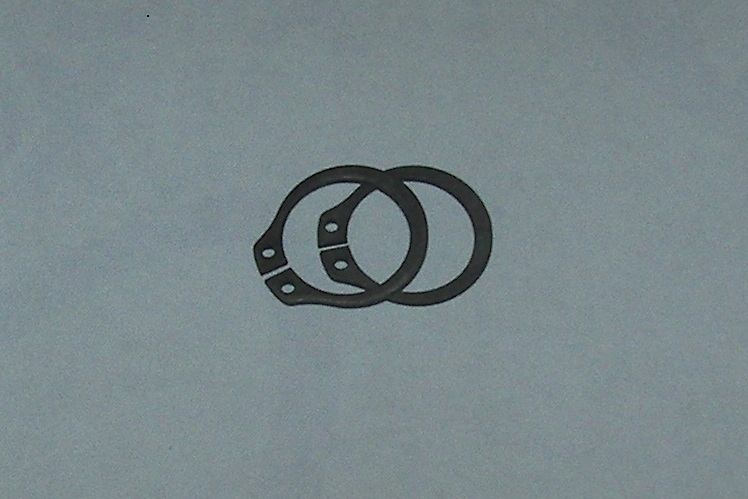

Snap Ring for Early ShaftShaft Snap Ring Set, used on early jet models only,  Set of 2, #38-0160 $1.50 pair

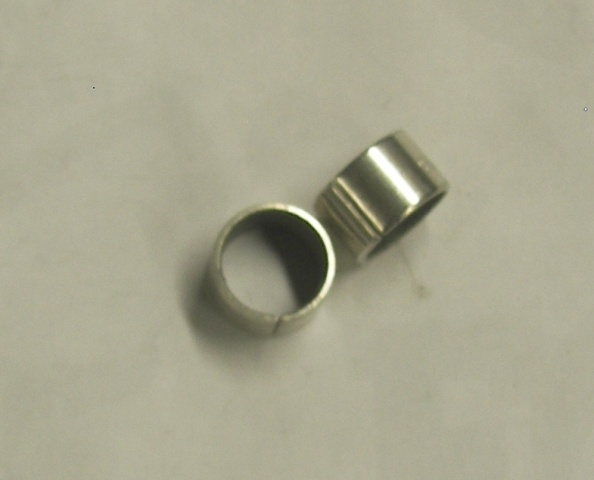

Bronze Bearing PTFE-Teflon Repair Sleeve, reduces wear and extends life of shafts, wear limit 0.504", requires boring of bearing to 0.595" to a depth of 0.380" from top, deburr bearing before installing, do not attempt without proper equipment, shop charge to install is only $15 if you mail in your set,  Set of 2, #38-0060-PRS$20.00 pair


Bronze Bearing Flanged Bronze Repair Sleeve, used if you overbore bearing when setting up for PTFE sleeve above, requires boring of bearing to 5/8" and counter bore to 3/4" for flange, deburr bearing before installing, do not attempt without proper equipment, shop charge to install is only $15 if you mail in your bearings and shafts,  Set of 2, #38-0060-BRS$14.00 pair


Bronze Bearing, wear limit 0.504", #38-0060$30 each


Length:
1/8 NPT x 12", 14", 16", or 18" Stainless Steel Braided w/ brass fittings. Fox #99-0200-XX      Custom lengths (20"+) and Stainless Steel fittings available by special order within 2-3 weeks.


Plastic Wrap for 1/8" Lines, ID= 5/16", it takes 15" to wrap a 12" line, order 1 foot more then actual length needed, #909-342 $1.50 per foot


Body to Line Elbow, 45 degree, #909-341-45 $7.50 each


Body to Line Elbow, 90 degree low profile, #38-5060 $4.75 each


Air Valves for All Fox Shox's, Original replacement, Nickel-Plated, 200 psi sustained, 300 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be found under Tools,  #38-0220,  $4.50 each

Standard Air Valve Cores, 200 psi sustained, 300 psi peak,  #909-054-2 2 for $1.90



Original Style Nickel Plated Air Caps, long skirt for easy threading, o-ring seal, measures 0.513" long by 0.350" O.D.,  #909-056-2 2 for $1.40
Nickel Plated Air Caps, similar to original in appearance but wall is thicker, long skirt for easy threading, o-ring seal, measures 0.559" long by 0.423" O.D.,  #909-058-2 2 for $1.40
Chrome Hex Air Caps, fiber ring seal,  #909-055-2 2 for $1
