THOR LAWSON'S
VINTAGE and EVOLUTION SUSPENSION PRODUCTS

ESP is an authorized vendor of Fox vintage decals that are no longer in production.  The Fox Head and Fox Tail are registered trade marks of Fox Head Inc and Fox Racing Inc.  Use, copy, sale, reproduction or publication in any form whether by decals, manuals, apparel or any other products without written permission of Fox Head Inc and Fox Racing Inc is forbidden by law and may lead to legal action.

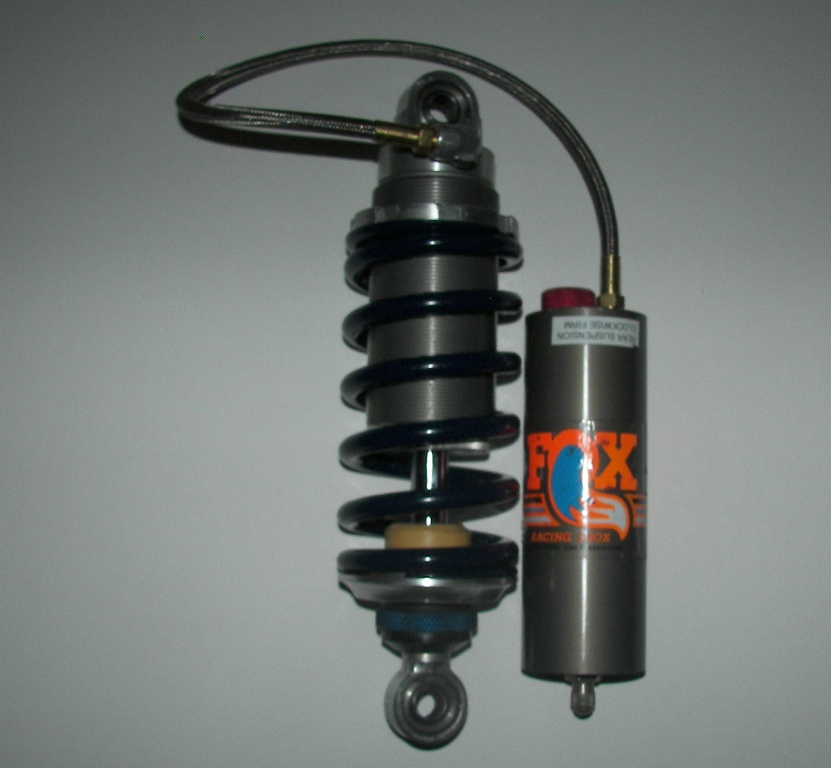

FOX TWIN-CLICKER PARTS
Most parts are also applicable to the Un-Clicker and Single-Clicker, same seal kit but with a few orings left over.
If you have a dual reservoir, let me know, and I will include extra reservoir orings.

Introduced in 1982.

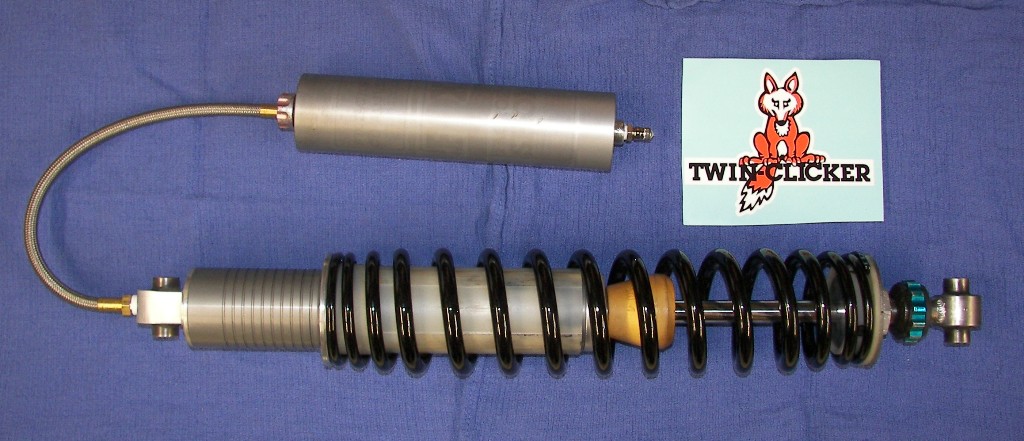

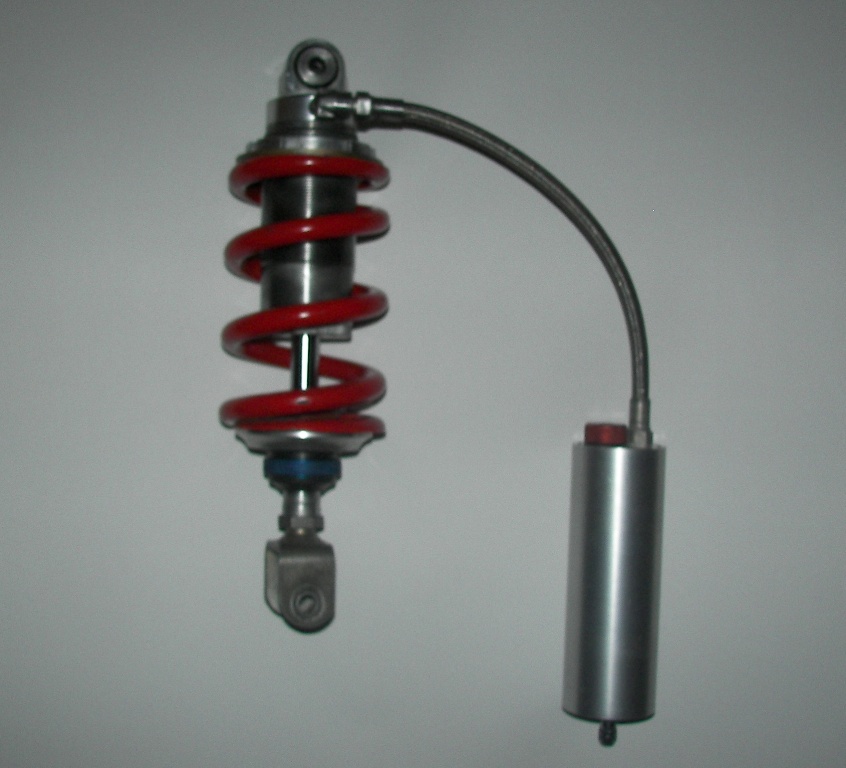

Yamaha 80's MonoShock TwinClicker


Oil: 5wt, pressure 300 psi for street, 200 psi for off-road and automotive.

The Yamaha TC for the MonoShock models uses 1/4" NPT line, in stock with several lengths on hand, all other versions use 1/8" NPT  line.


Fox Twin-Clicker Manuals, 3 in 1.  32 pages covering General instructions, Honda ProLink and Yamaha YZ Mono #919-006$11.00






FOX TWIN-CLICKER 1/2" SEAL KIT - For 1/2" shafts, used mainly on early TC made for KTM, includes all of the soft parts for rebuild, hi-temp oring seal, wiper, orings for sealhead, piston, reservoir, meter adjust rod, and reservoir clicker, plus detent balls for red clicker knob.  #909-612$30.00




FOX TWIN-CLICKER 1/2" SHAFT SEALHEAD BUSHING -   #909-613$10.00

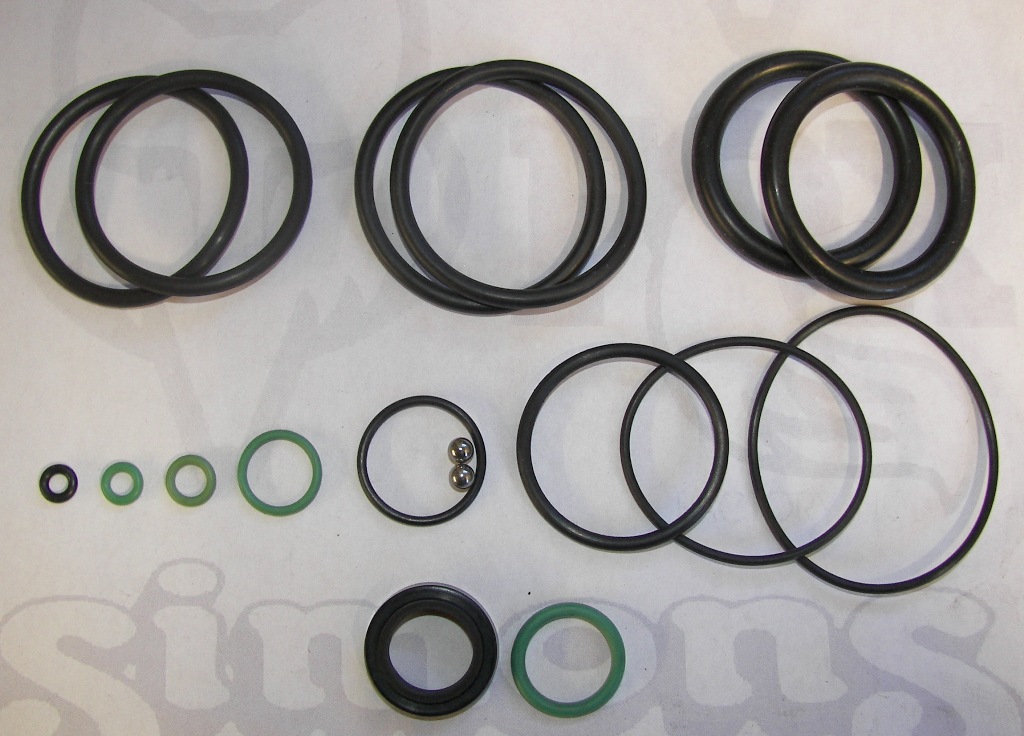

FOX TWIN-CLICKER 5/8" SEAL KIT OFF-ROAD VERSION- For 5/8" shafts, Un and Single-Clicker, dirt version only without the screw-on dust cap with an extra wiper (the cap has 2 holes for a pin wrench and an allen set screw), includes all of the soft parts for rebuild, hi-temp oring seal, wiper, orings for sealhead, piston, reservoir, meter needle, and reservoir clicker, plus detent balls for red clicker knob. (some parts may not be used in all versions).   #909-658$30.00

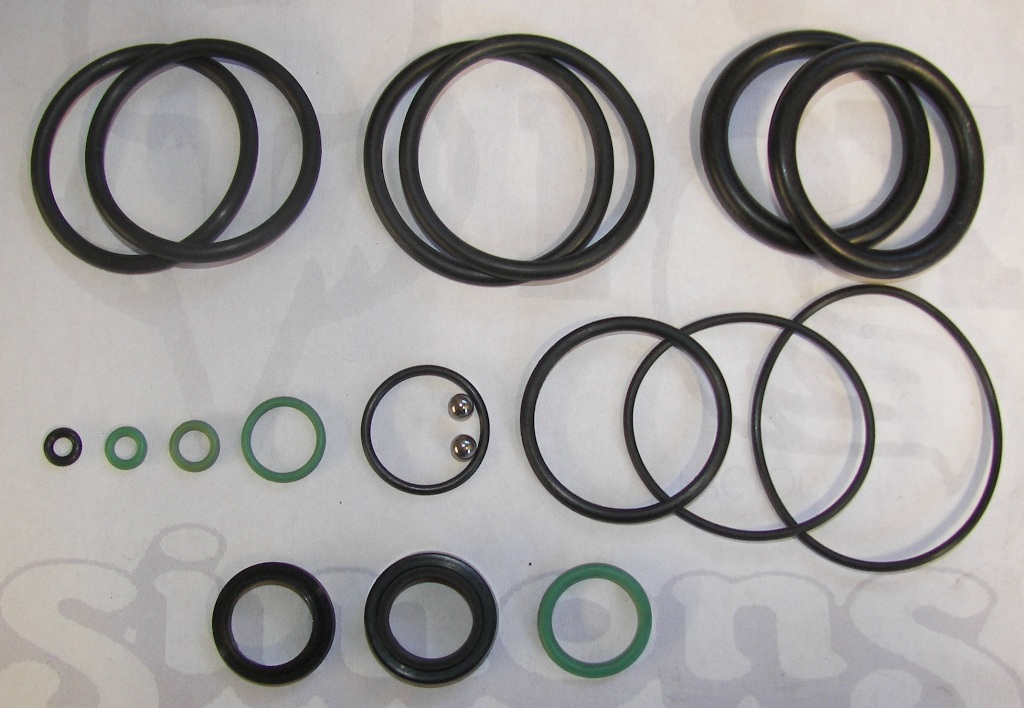

FOX TWIN-CLICKER 5/8" SEAL KIT ROAD VERSION- For 5/8" shafts, Un and Single-Clicker, road version only with the screw-on dust cap with an extra wiper (the cap has 2 holes for a pin wrench and an allen set screw), includes all of the soft parts for rebuild, hi-temp oring seal, wiper, orings for sealhead, piston, reservoir, meter adjust rod, and reservoir clicker, plus detent balls for red clicker knob. (some parts may not be used in all versions).  #909-665$34.00




FOX TWIN-CLICKER Shaft Adjusting Rod C-Clip for Street Shoxs - For street Shoxs that have an o-ring and brass bushing on mount end of shaft.  #919-627$1.00 each

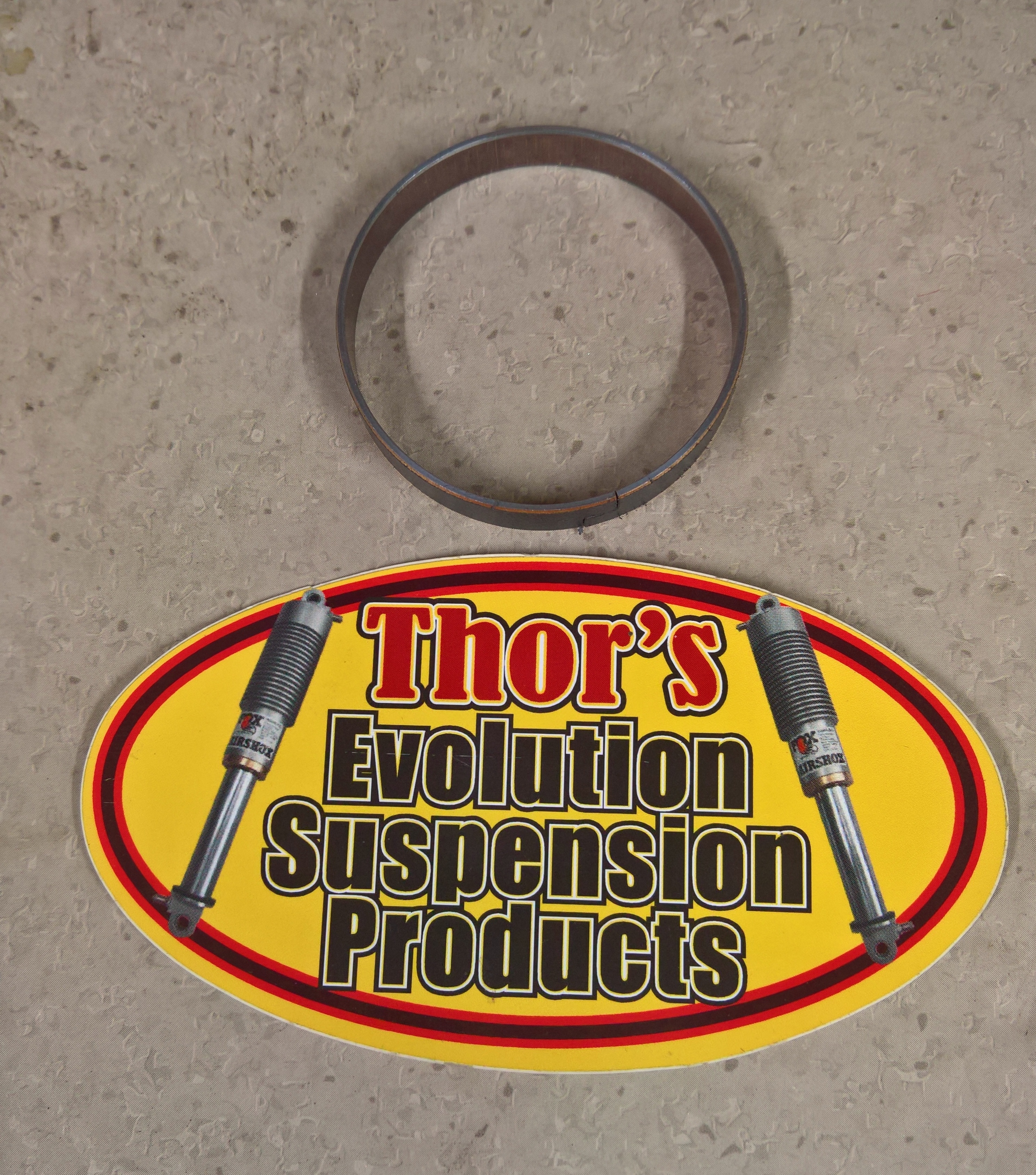

FOX TWIN-CLICKER Shaft Piston Wear Ring for Street Shoxs - For shaft piston of street Shoxs that do not have a oring under the piston ring.  Thickness of ring is 0.052", wear limit of old rings is 0.049".   #919-668$12.00 each




FOX TWIN-CLICKER Reservoir Piston Wear Ring for Street and Offroad versions - Same ring as above.  For reservoirs utilizing a ring thickness of 0.052", outer diameter of piston will be 1.727".  Will not fit early versions needing 0.040" with piston diameter of 1.750" without machining piston to 1.727".  Thickness of ring is 0.052", wear limit of old rings is 0.049".   #919-667$12.00 each


Twin-Clicker Decals -- a wide variety of decals were used on the FTC, I have about 5 more decals that I'm working on having reproduced as soon as I finish the touch-up work on the scanned images.  For the most part, after 1983, which one to use is a matter of personal choice.

FOX TWIN-CLICKER DECAL -   #D-FTC$6.00


Fox Twin-Clicker Compression Adjust Small Black on Clear RESERVOIR STICKER, 1-3/8" by 1-1/16", #D-987-SB $4.50 each


Fox Twin-Clicker Compression Adjust Large Black RESERVOIR STICKER, 2-11/16" by 2-1/16", #D-988-LB $5 each


NEW!!! Fox Twin-Clicker Compression Adjust Small White on Clear RESERVOIR STICKER, 1-3/8" by 1-1/16", #D-987-SW $4.50 each


NEW!!! Fox Twin-Clicker Compression Adjust Large White on Clear RESERVOIR STICKER, 2-11/16" by 2-1/16", #D-988-LW $5 each




FOX Factory Twin-Clicker Reservoir, Set of 1, used on the early 80's FTC Yamaha Mono and 81-83 Honda Pro-Link Shox, #VF-101-1 $6 each


Fox Factory Decal typically used on road versions, 3" x 2-1/4", D-110..... $5.00 each


Fox Factory Large Decal, 4-3/8" x 3-1/4", D-110-LG..... $6.00 each


FTC and FFS Reservoir Sticker

NEW!!! Fox FoxTail with Border for Twin-Clicker and Factory Shox Reservoir, 2-1/2"x2", D-871..... $6.00 each

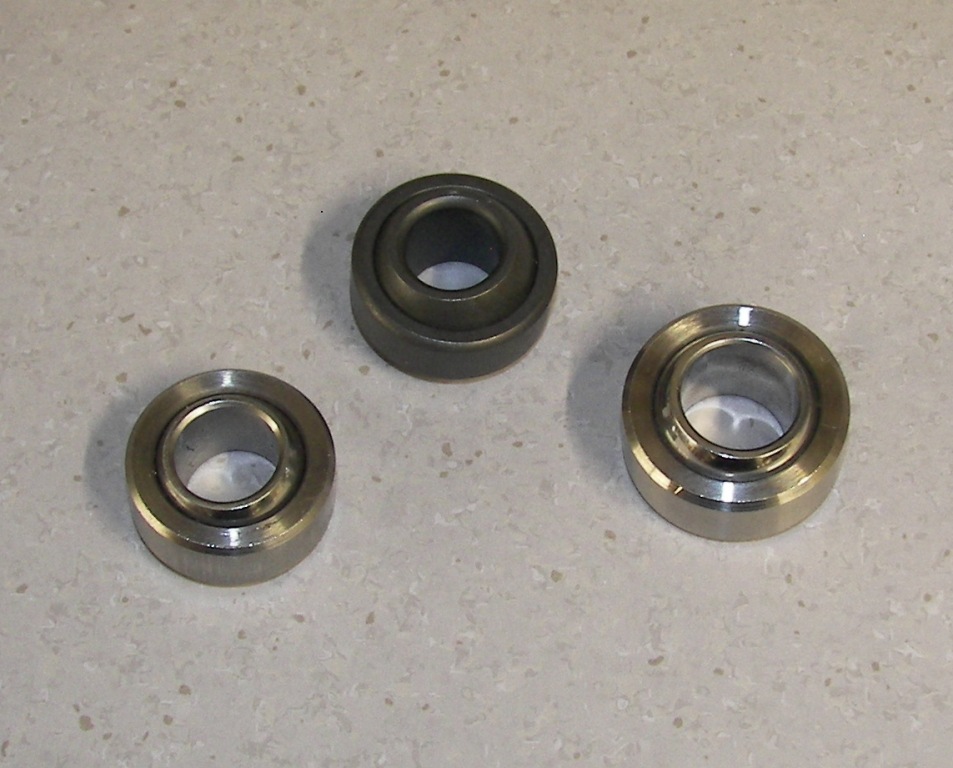

FTC MOUNT HEIM BEARING, Stainless Steel, 1/2"x1"x1/2"x25/64" (ID x OD x InnerW x OuterW) -  #919-617 $35 each

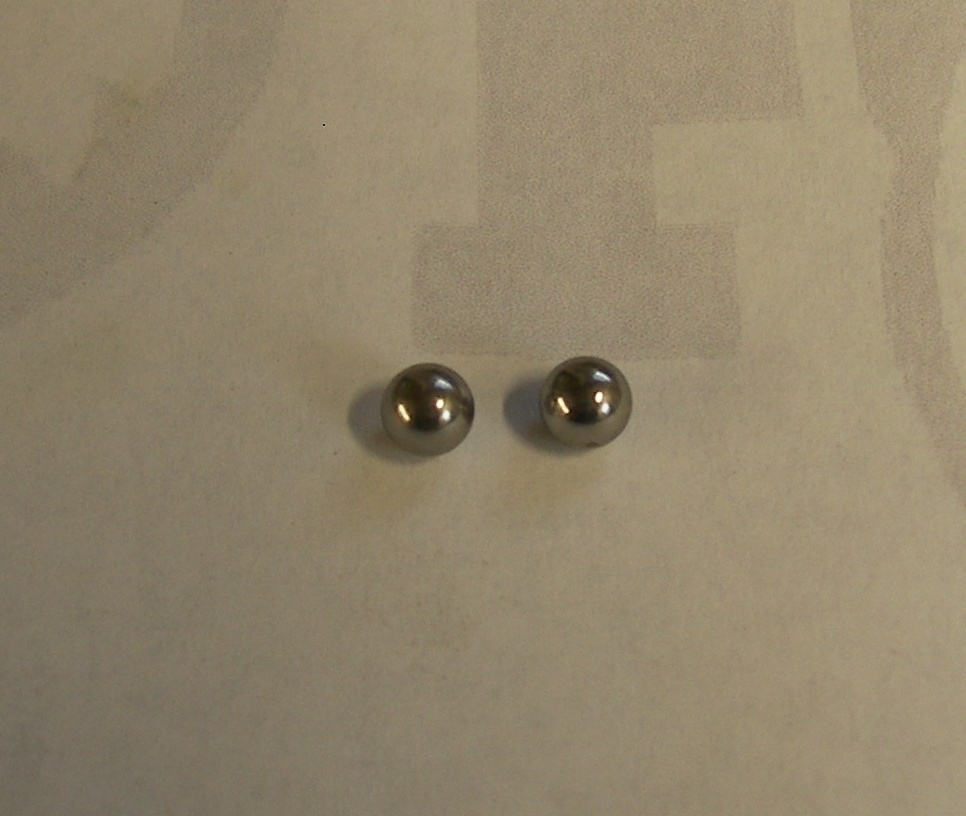

FOX TWIN-CLICKER DETENT BALLS - 2x included in seal kits, 3/16" ball bearings for red compression knob on reservoir, also used in compression valve,  #97-5420$0.50 pair

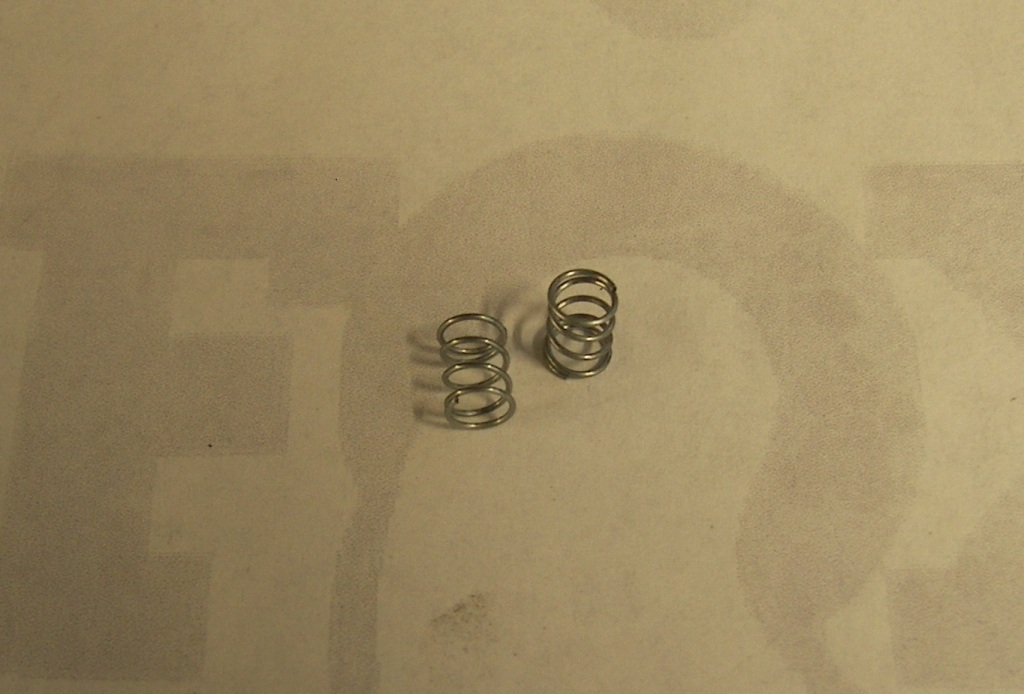

FOX TWIN-CLICKER DETENT SPRINGS -   #97-5430$5 pair

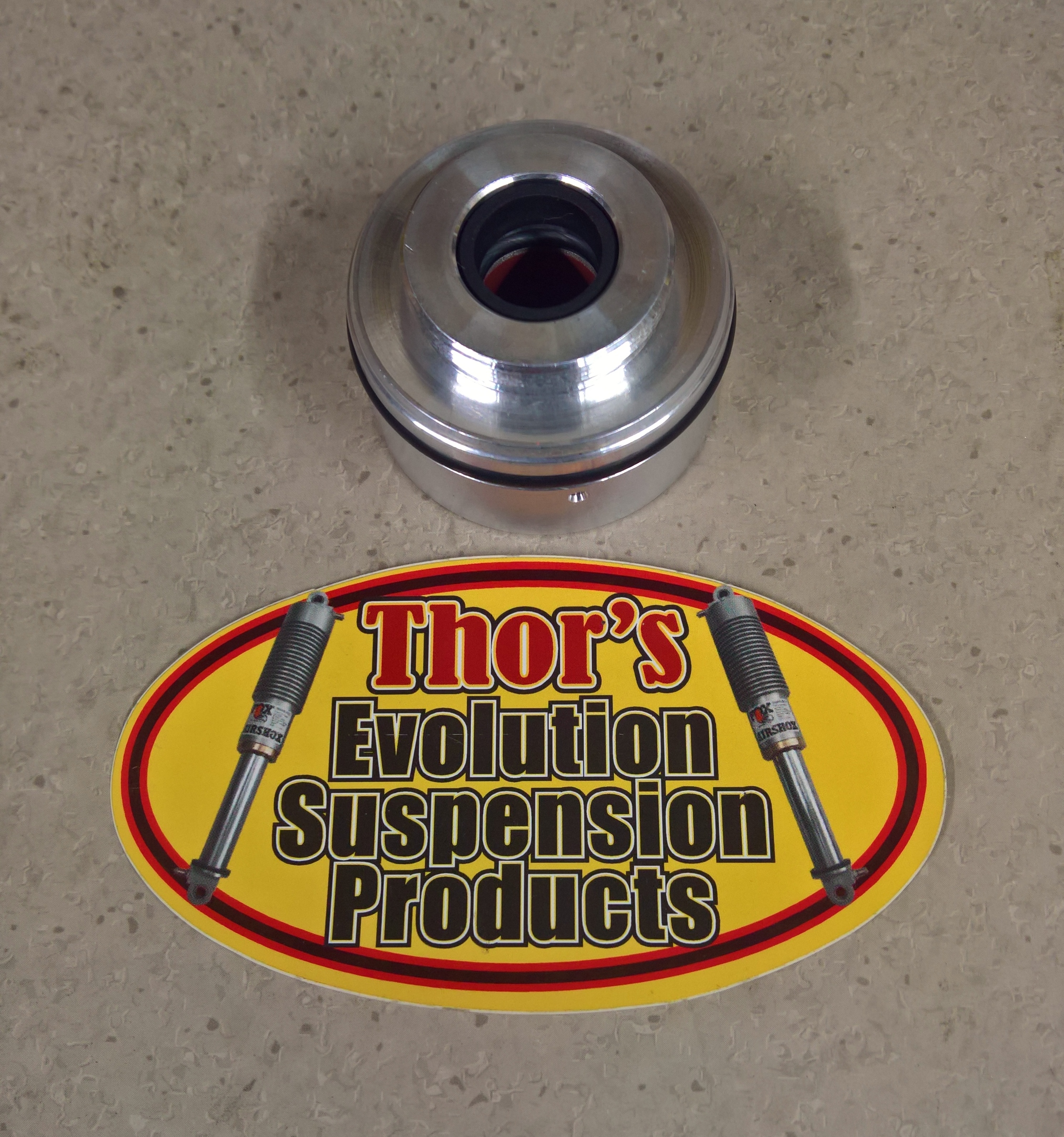

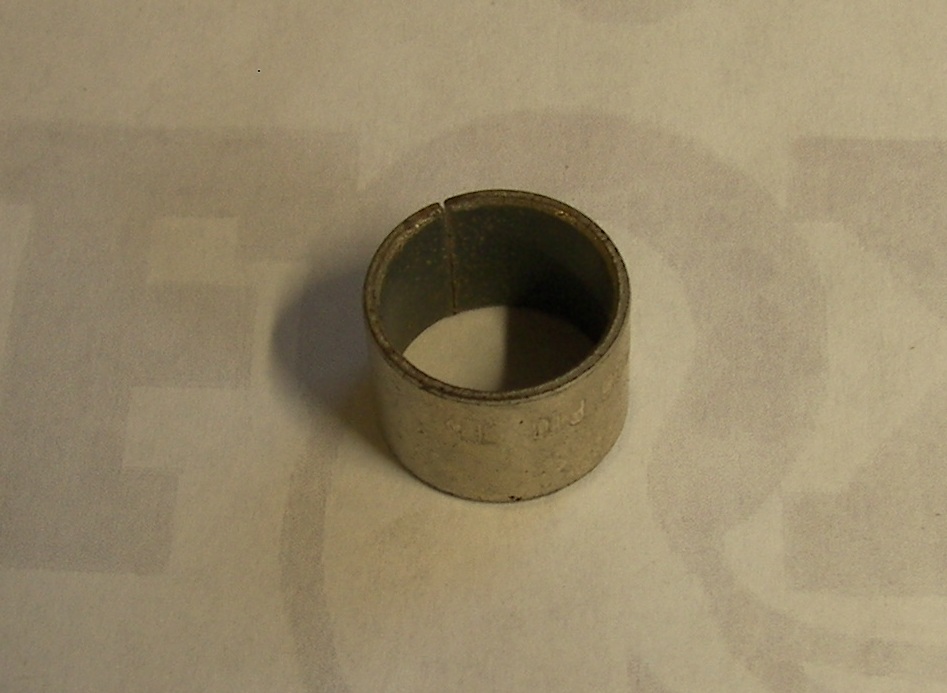

FOX TWIN-CLICKER 5/8" SHAFT SEALHEAD BUSHING -   #909-659$10 ea

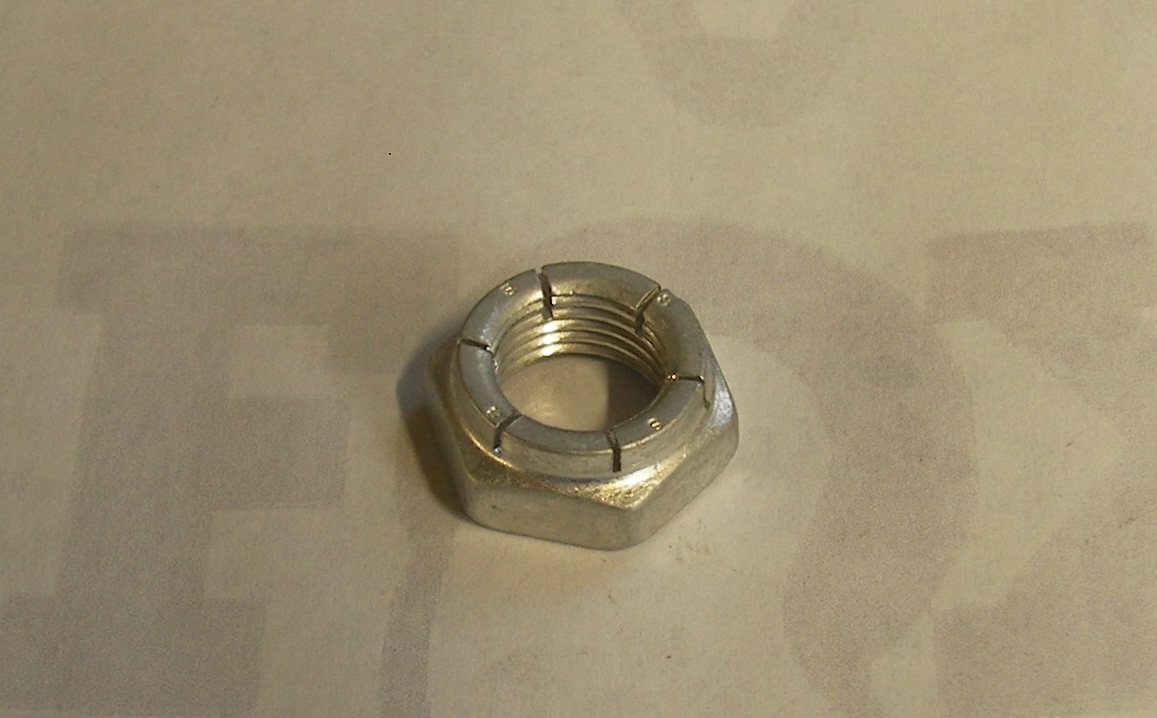

FOX TWIN-CLICKER 5/8" SHAFT Locknut -   #97-5320$3.25 ea

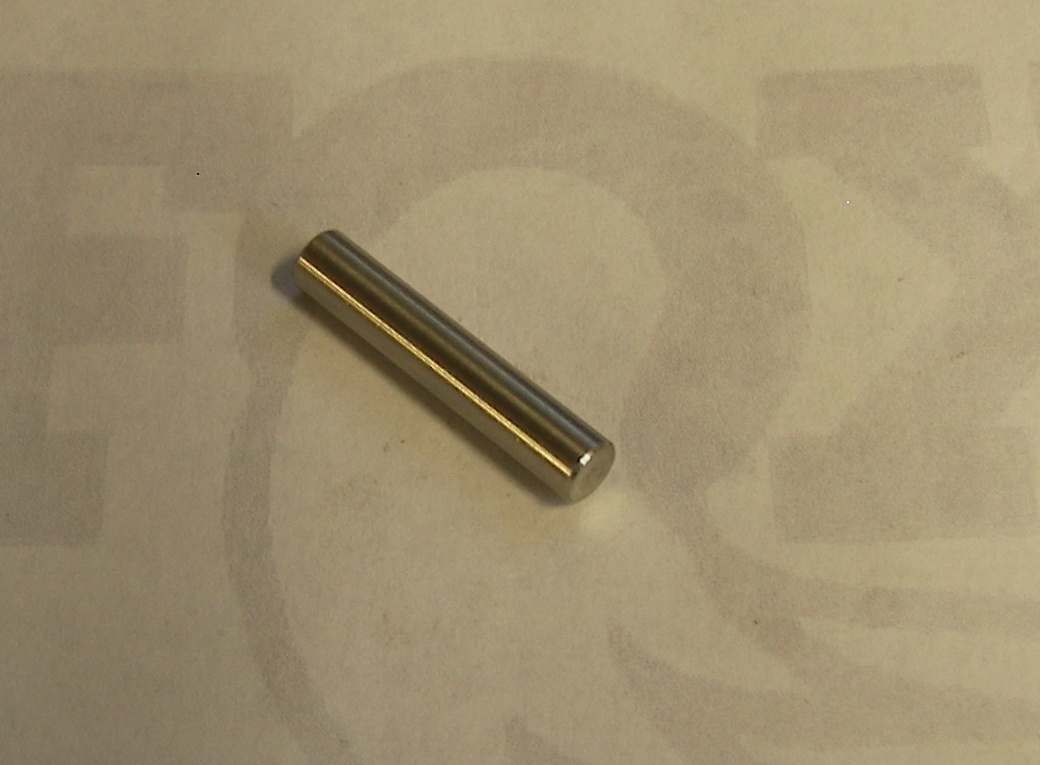

FOX TWIN-CLICKER CROSS PIN for Rebound Adjuster-   #97-5050$3.50 ea

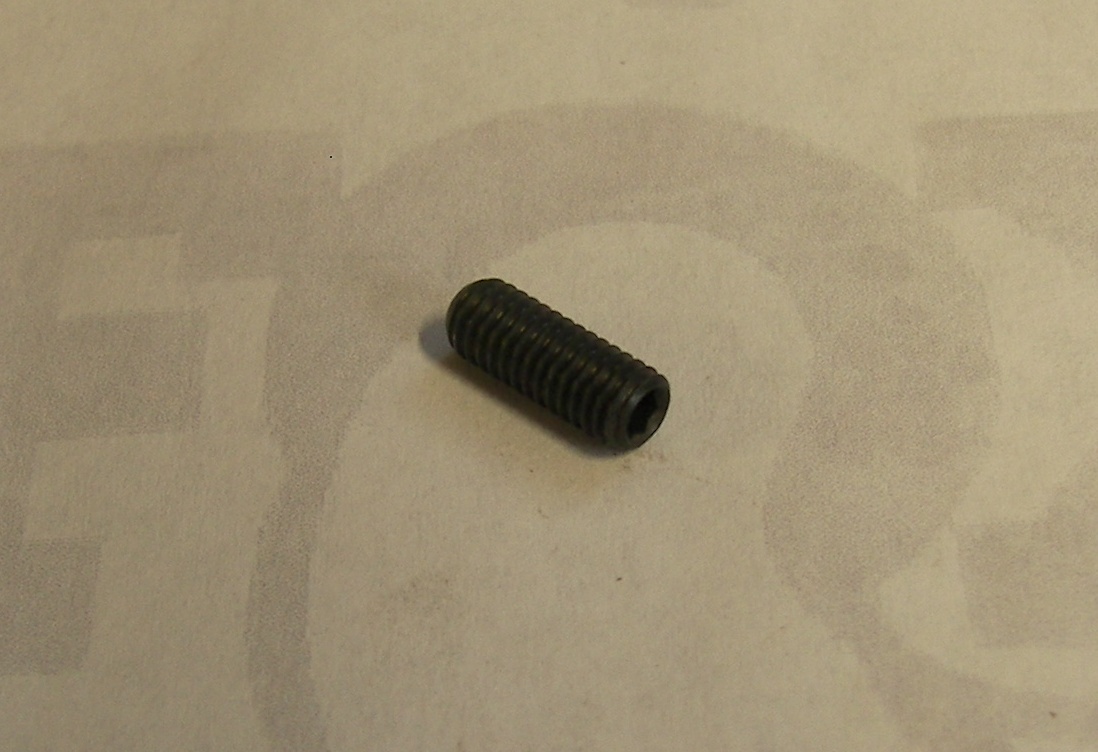

FOX TWIN-CLICKER 5/8" Cap Set Screw-   #909-656$1.00 ea

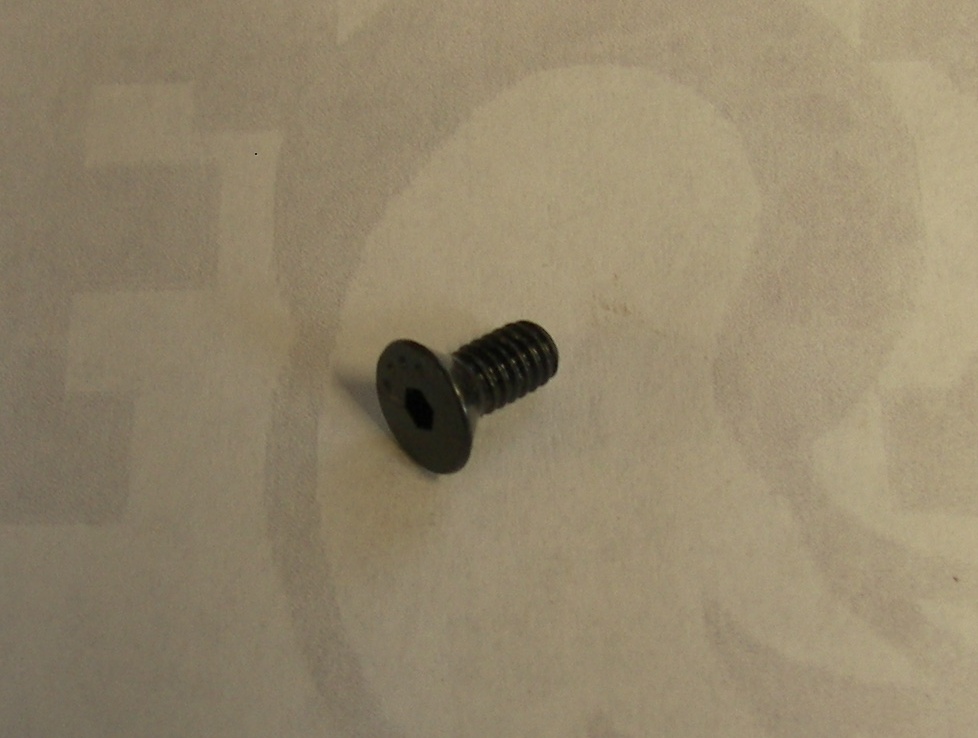

FOX TWIN CLICKER Red Knob Screw-   #97-5390$1.00 ea

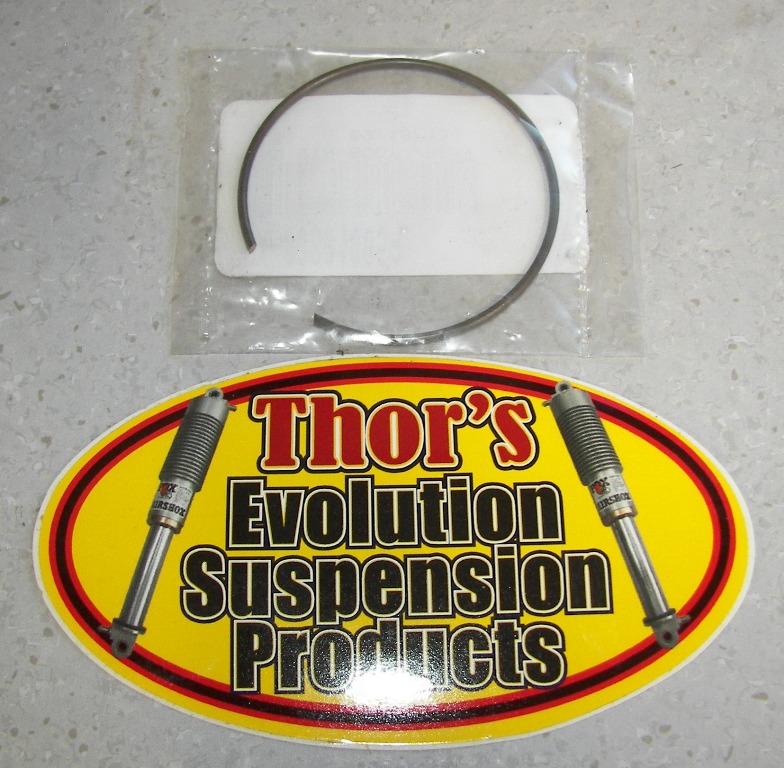

FOX TWIN CLICKER Wire Ring for Reservoir and Sealhead-   #97-5440$2.50 ea


FOX TWIN CLICKER Wire Ring for Spring Retainer-   #97-6290$2.50 ea

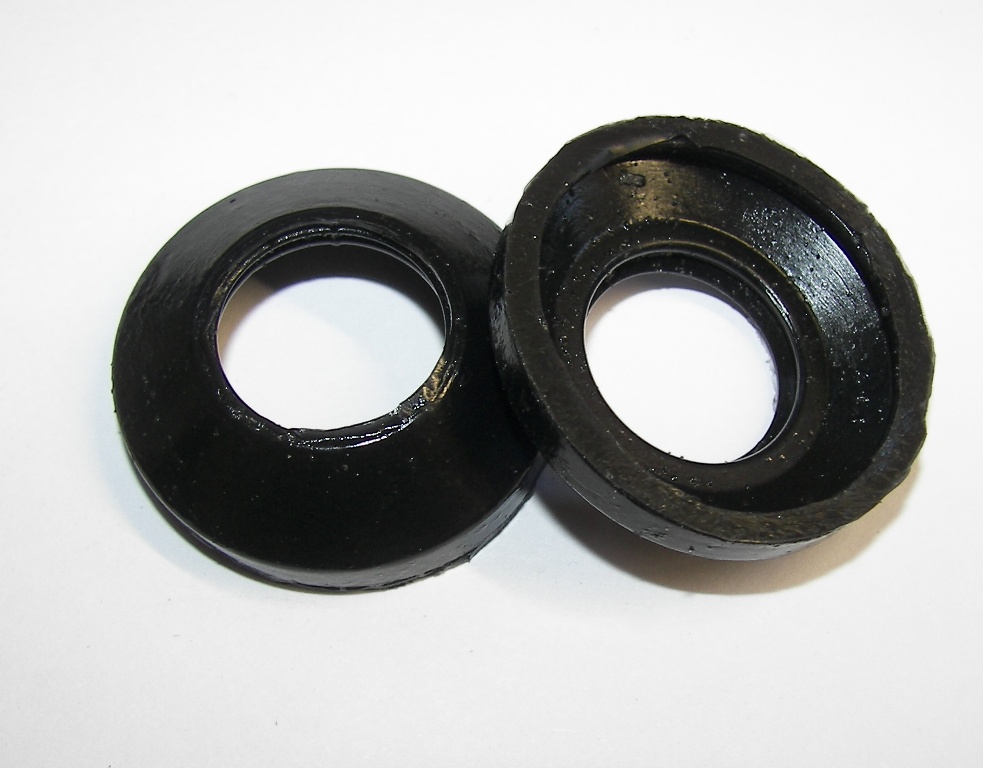

FOX TWIN CLICKER Reproduction Dust Cover for Rebound Adjuster-   #97-5030$18 each   **(2 required, one on each side of adjuster)**

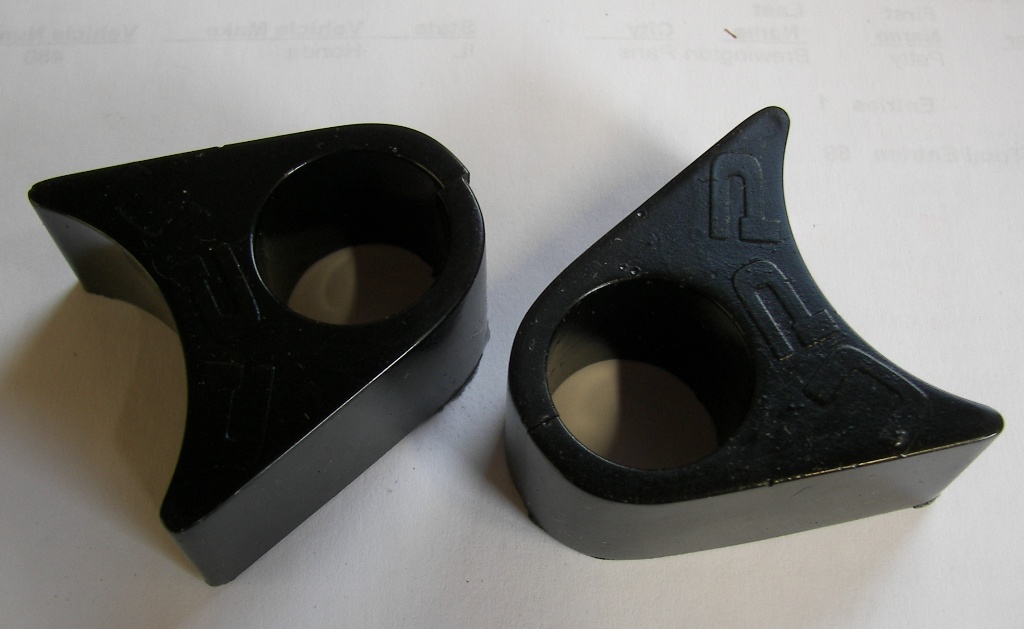

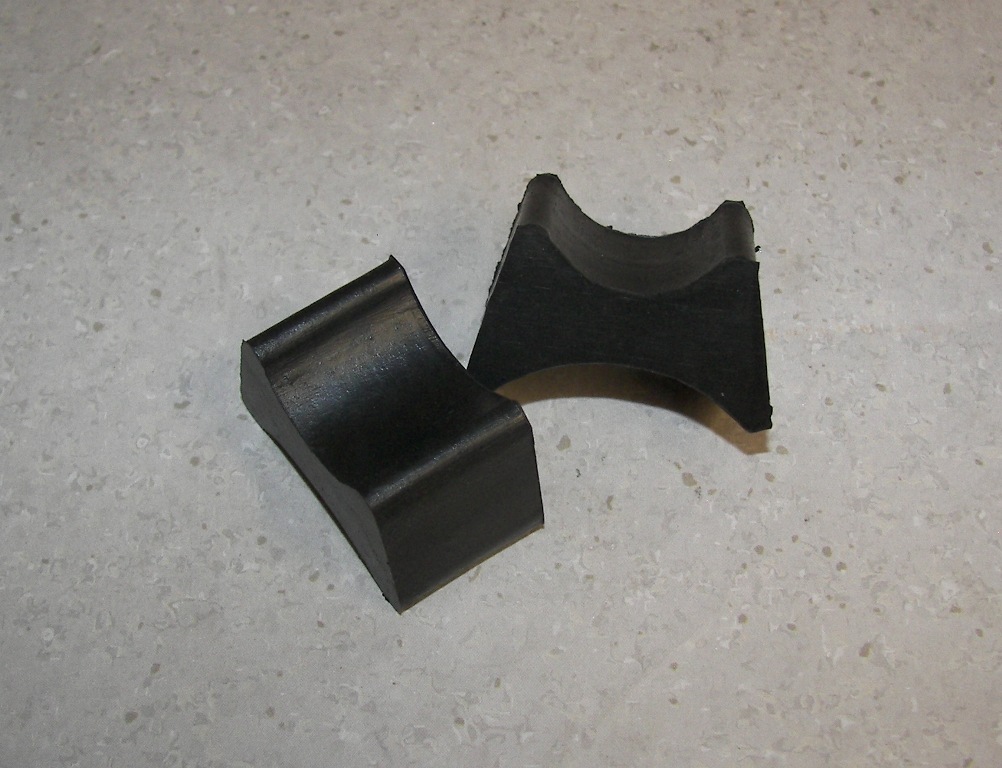

NEW!!!  Reservoir Mount Rubber, size Small, #919-324-2 $24 pair


Reservoir Mounting Rubbers, size Large, hose clamps not included,  #919-325$32 pair

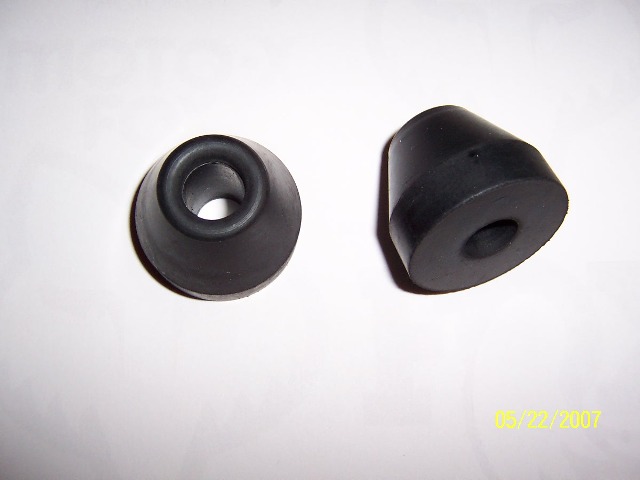

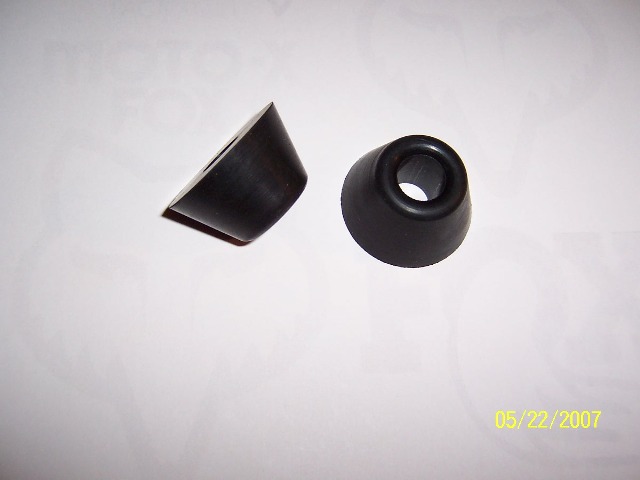

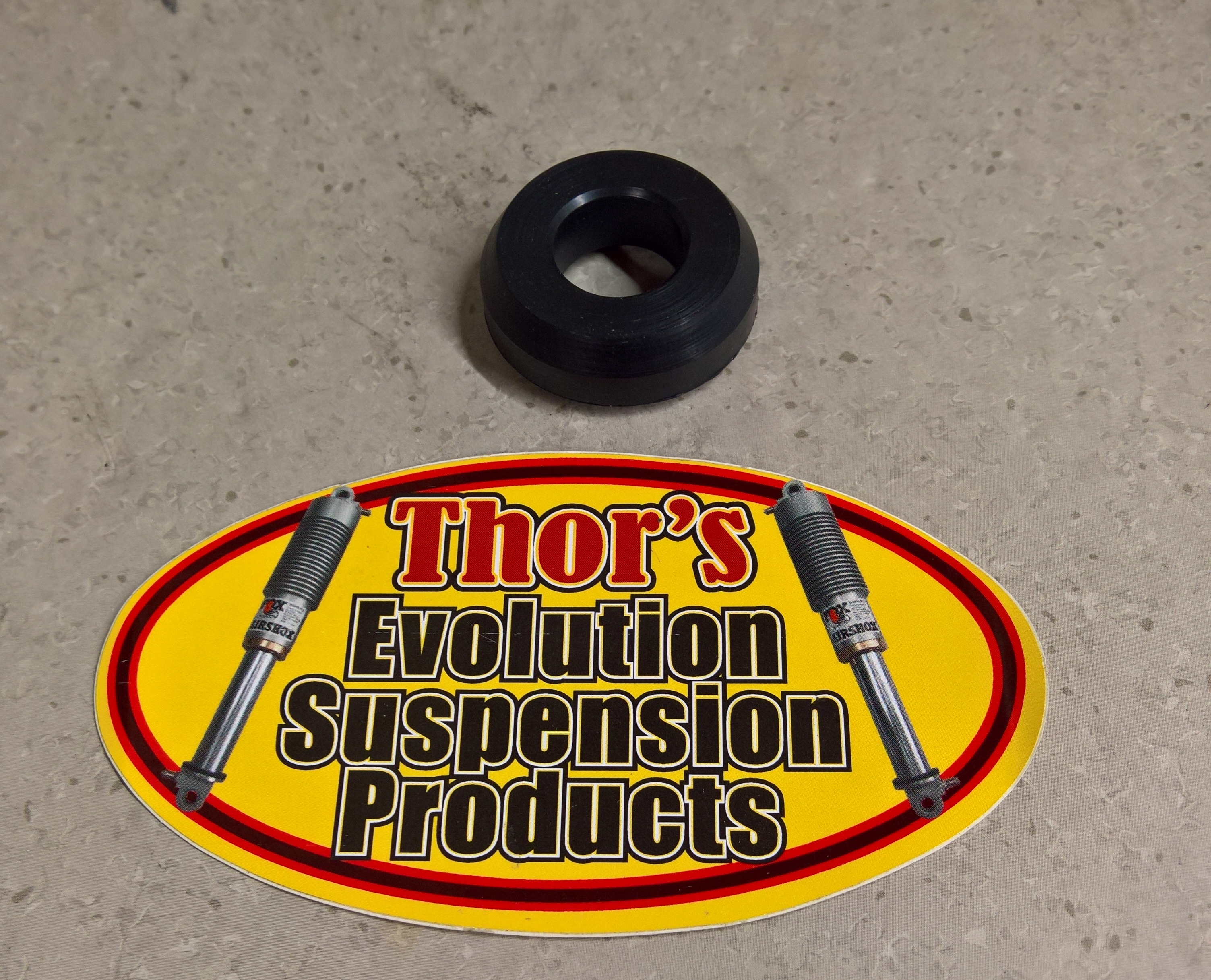

Bottom Out Bumper 1/2" shaft, 3/4" hgt. black rubber,  #909-489 $14 each


Bottom Out Bumper 1/2" shaft, 1-1/4" hgt. black rubber,  #909-487 $18 each

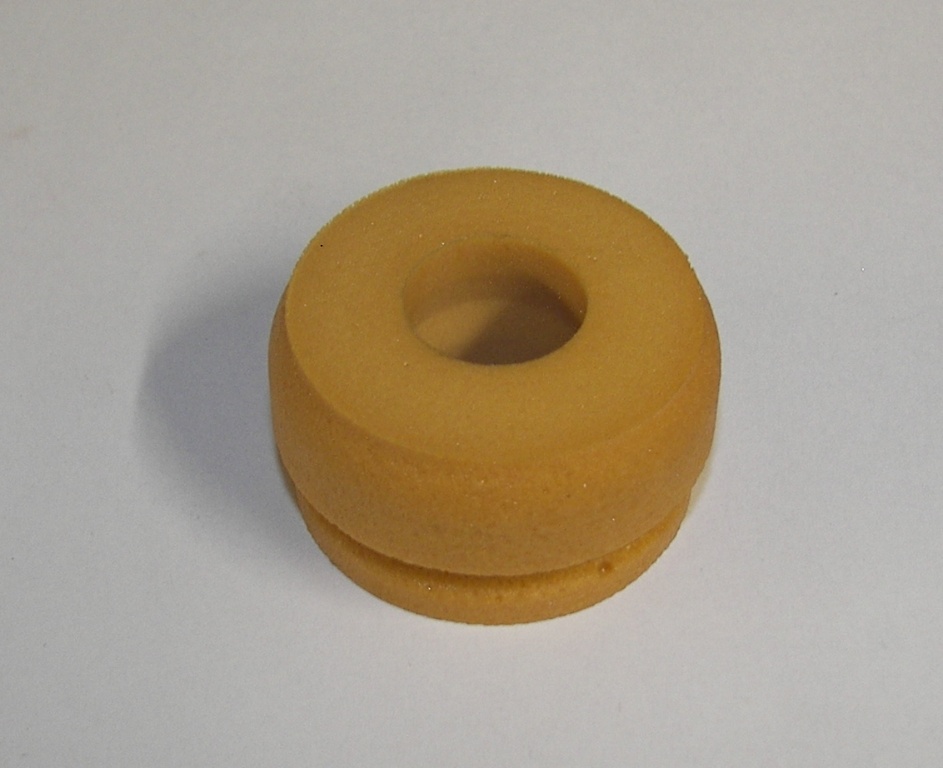

Bottom Out Bumper 1/2" shaft, 1-1/2" hgt. yellow foam,  #909-381 $25 each

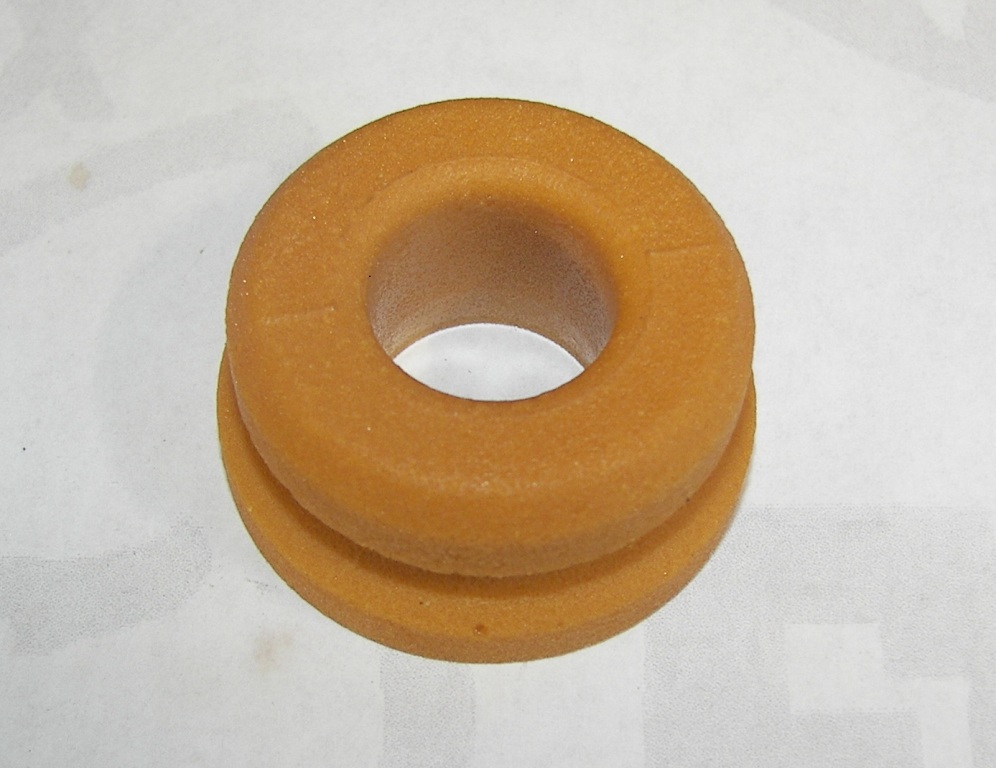

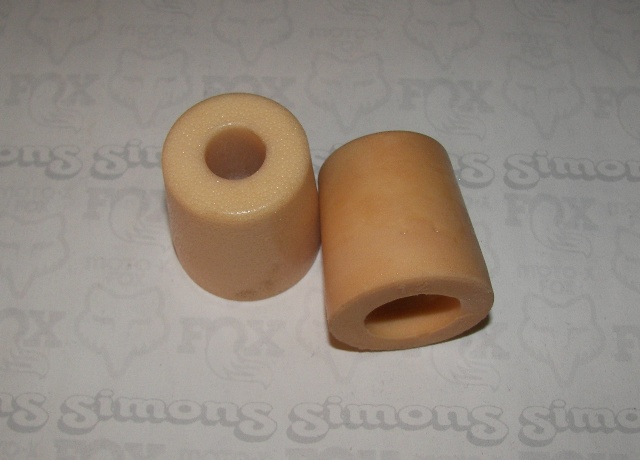

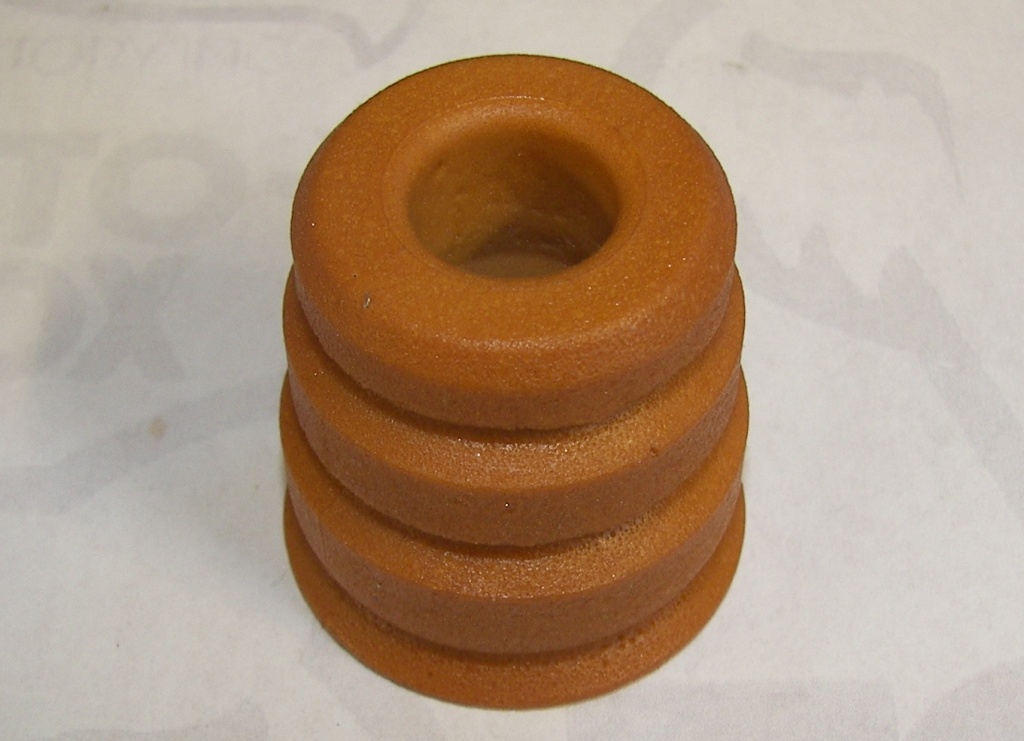

BOTTOM OUT BUMPER 5/8" or 16mm ,1-3/4" (35mm) height yellow foam BOTTOM OUT BUMPER -   #888-009$49.40

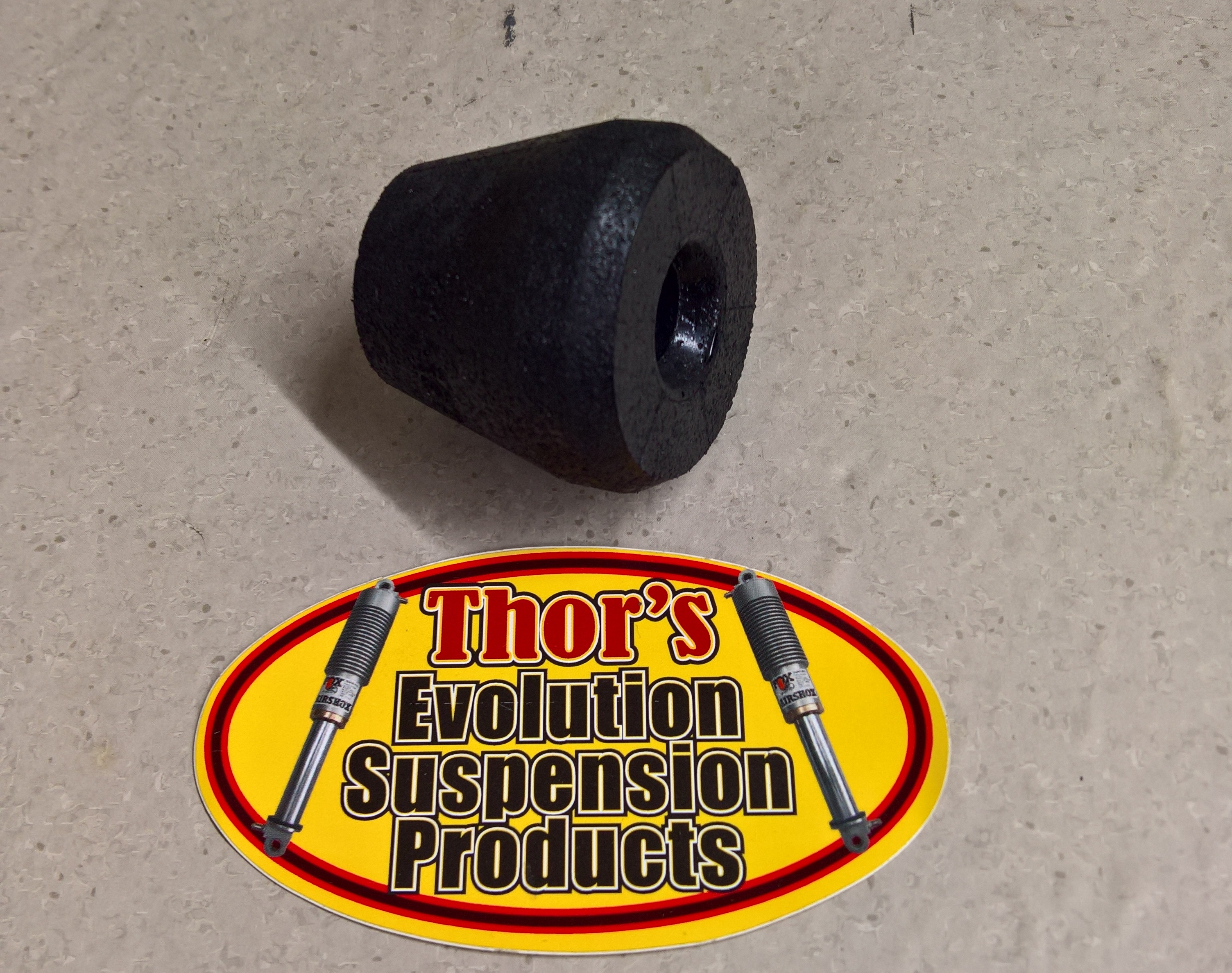

BOTTOM OUT BUMPER 5/8" or 16mm shaft, 1" (25mm) height black rubber -   #888-010$38.40


BOTTOM OUT BUMPER 5/8" or 16mm shaft, app. 5/8" (15mm) height yellow foam -   #800-081$27.99


BOTTOM OUT BUMPER 5/8" or 16mm shaft, app. 1" (25mm) height yellow foam -   #800-082$27.99


BOTTOM OUT BUMPER 5/8" or 16mm shaft, app. 1-5/8" (45mm) height yellow foam -   #800-083$27.99

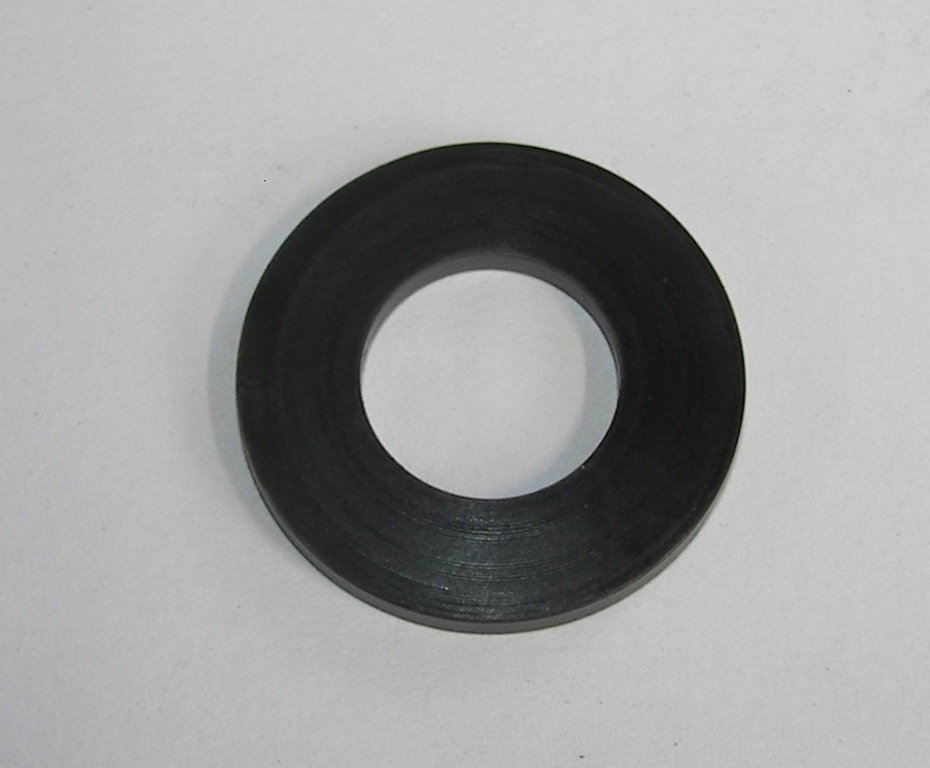

Bumper Ring 5/8" or 16mm shaft, black nylon composite, high impact resistant, prevents bumper from damaging wiper   -   #97-5100$5.00


remote reservoir line, 1/8 NPT x 12" Stainless Steel Braided w/ brass fittings. Fox #99-5090  $24.25 each    Custom lengths (12"+) and Stainless Steel fittings available by special order within 2 weeks.


remote reservoir line, 1/8 NPT x 14" Stainless Steel Braided w/ brass fittings. (Fox #95-0200) #909-344 $25.25 each


remote reservoir line, 1/8 NPT x 16" Stainless Steel Braided w/ brass fittings. (Fox #95-0200) #909-346 $26.25 each

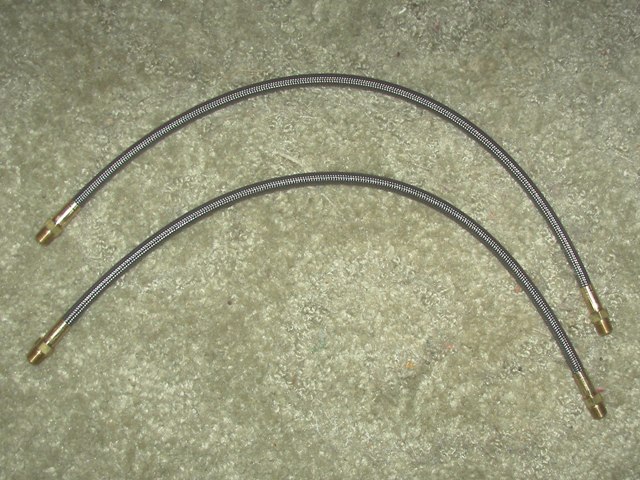

remote reservoir line, 1/8 NPT x 18" Stainless Steel Braided w/ brass fittings. (Fox #95-0200) #909-348 $27.25 each

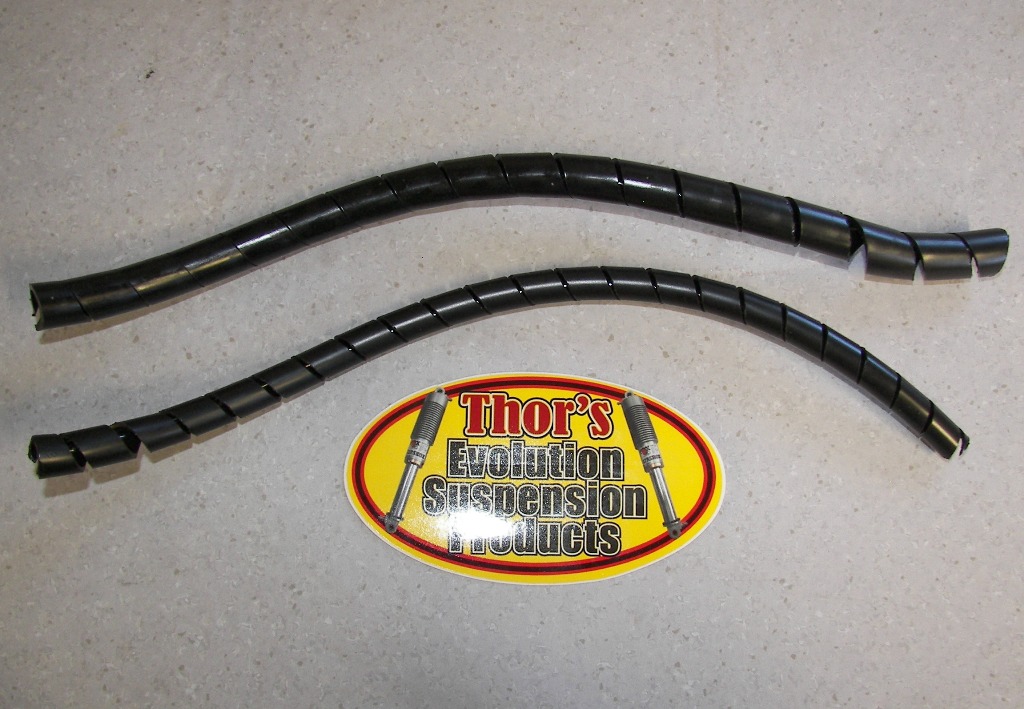

NEW!!! Plastic Wrap for 1/8" Lines, ID= 5/16", it takes 15" to wrap a 12" line, order 1 foot more then actual length needed, #909-342 $1.50 per foot

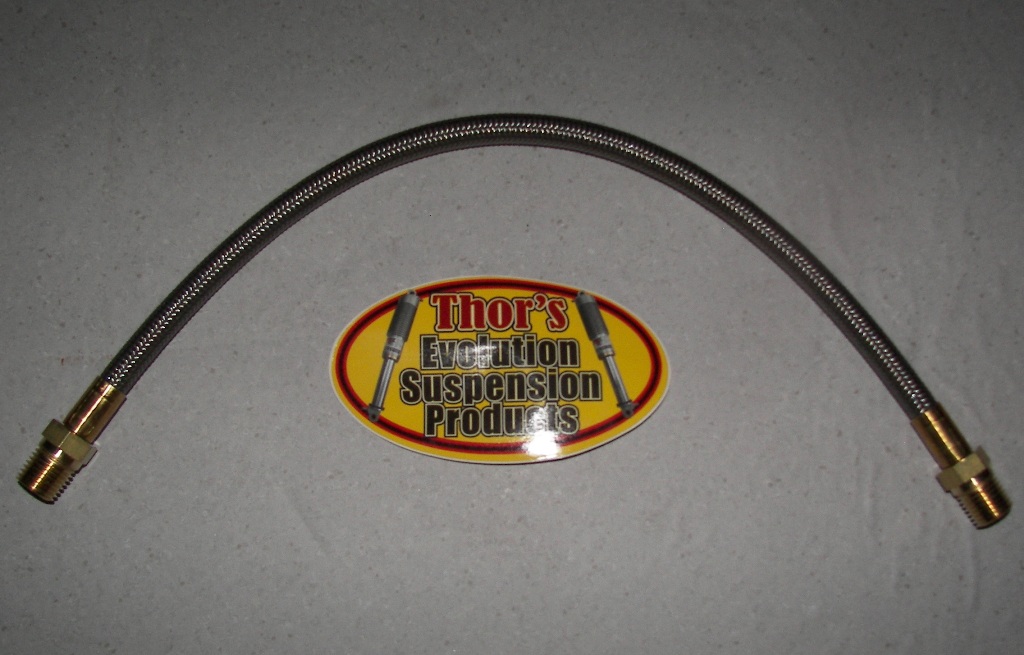

remote reservoir line, 1/4 NPT x 12" Stainless Steel Braided w/ brass fittings. (Fox #97-5380) #919-672  $32 each    Custom lengths (12"+) and Stainless Steel fittings available by special order within 2 weeks.


remote reservoir line, 1/4 NPT x 14" Stainless Steel Braided w/ brass fittings. (Fox #97-5380) #919-673  $34 each


remote reservoir line, 1/4 NPT x 15" Stainless Steel Braided w/ brass fittings. (Fox #97-5380) #919-674  $35 each


remote reservoir line, 1/4 NPT x 16" Stainless Steel Braided w/ brass fittings. (Fox #97-5380) #919-675  $36 each ON ORDER


remote reservoir line, 1/4 NPT x 18" Stainless Steel Braided w/ brass fittings. (Fox #97-5380) #919-676  $38 each ON ORDER


NEW!!! Plastic Wrap for 1/8" Lines, ID= 3/8", it takes 16" to wrap a 12" line, order 1 foot more then actual length needed, #919-678 $2 per foot

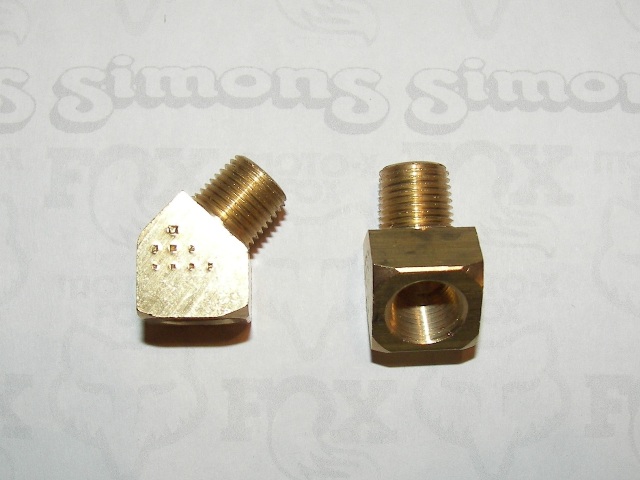

Body to Line Elbow, 45 degree, #909-341-45 $7.50 each

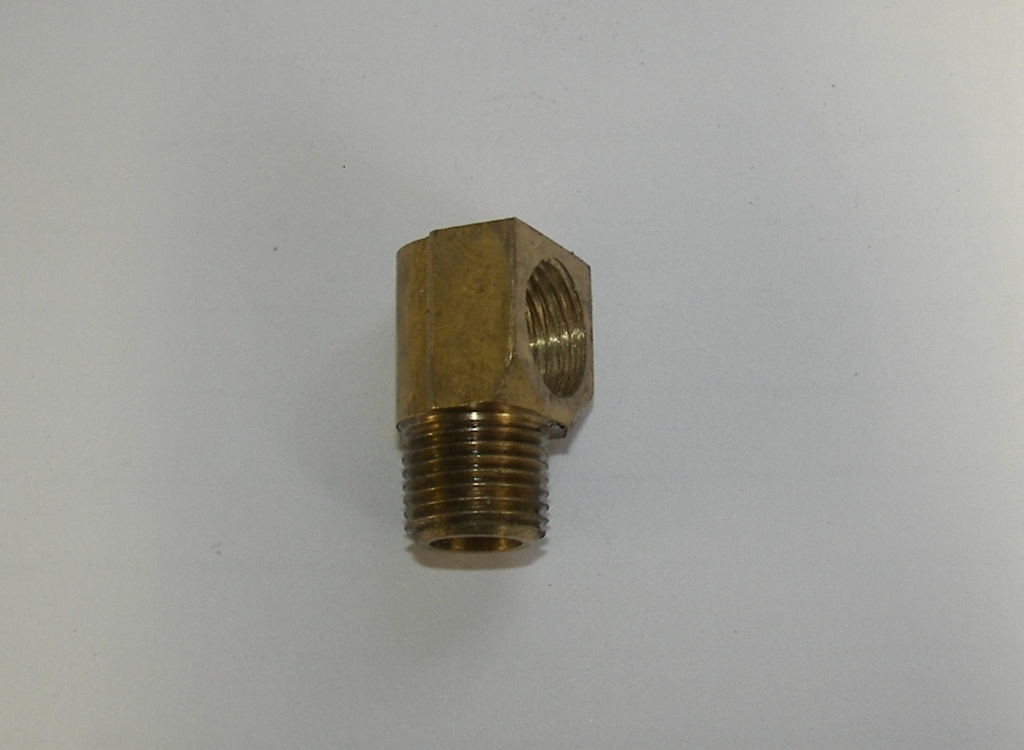

Body to Line Elbow, 90 degree low profile, #38-5060 $4.75 each

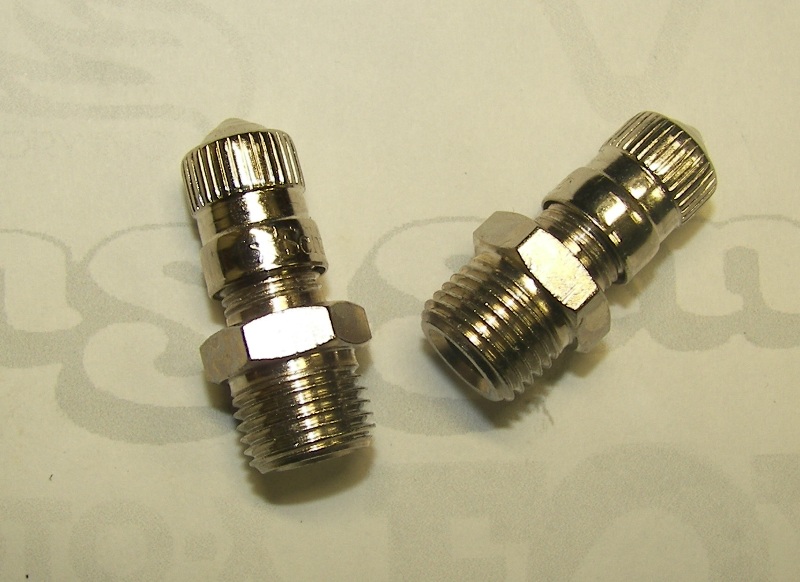

Air Valve 1/8" NPT with High Pressure Core, Nickel-Plated, 400 psi sustained, 500 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be in the Tool section,  #909-061,  $5.80 each

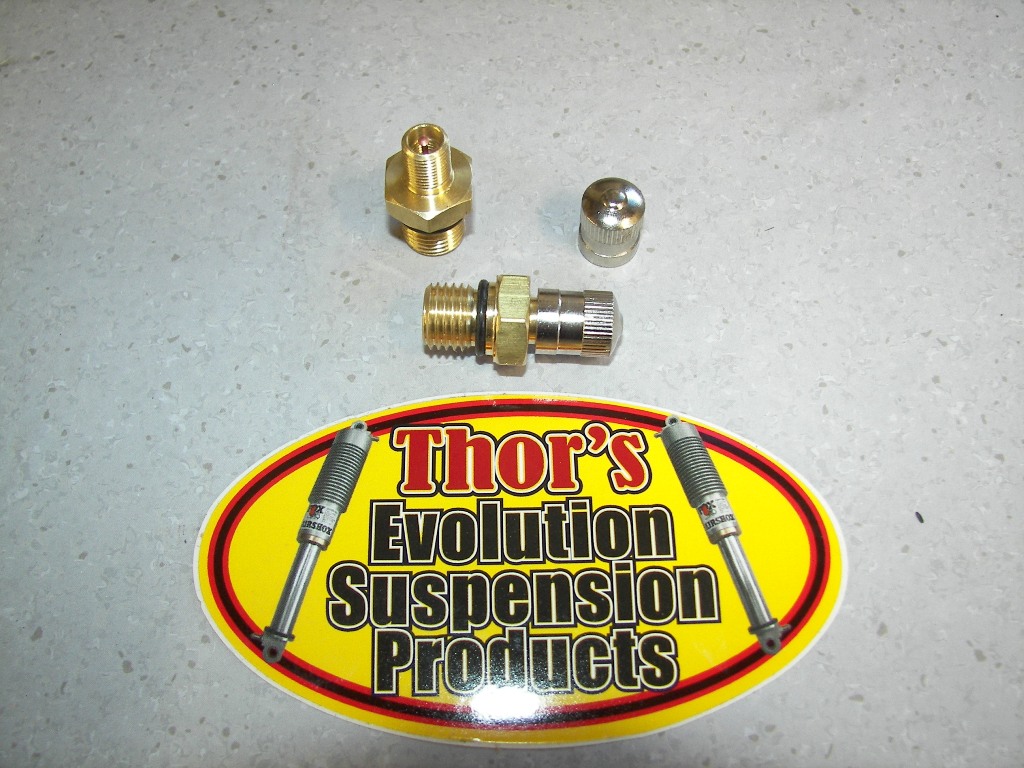

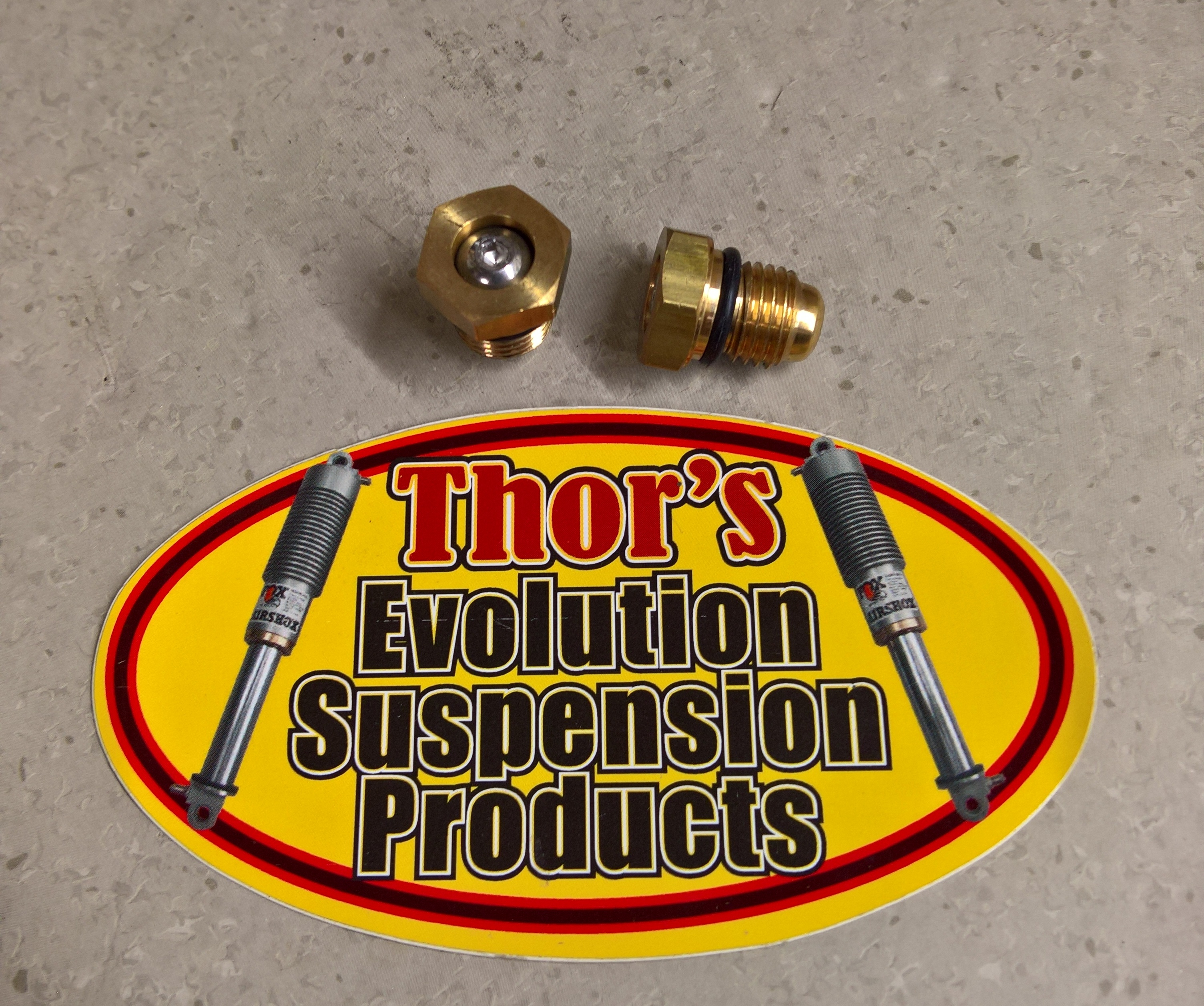

NEW!!!  Air Valve 7/16"-20 with High Pressure Core and Large Cap, 400 psi sustained, 500 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be in the Tool section,  #909-062,  $19.75 each

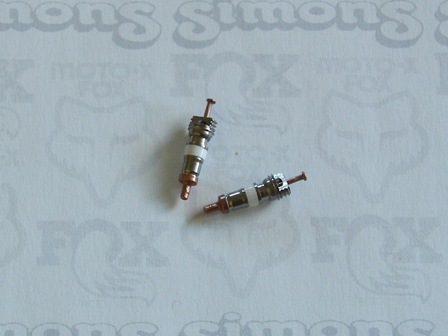

Hi-Pressure Air Valve Core for All Fox Shox's, aircraft grade, recommended for FTC, MonoShock, Factory Shoxs and AirShoxs set at  200-300 psi, 400 psi sustained, 500 psi peak,  #909-053 $2.25 each

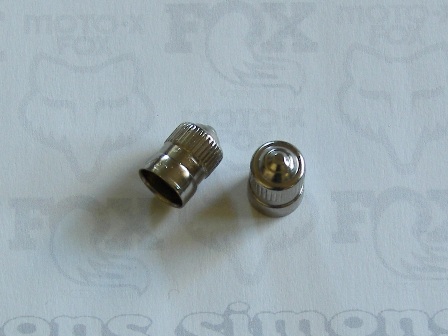

Original Style Nickel Plated Air Caps, long skirt for easy threading, o-ring seal, measures 0.513" long by 0.350" O.D.,  #909-056 $0.70 each

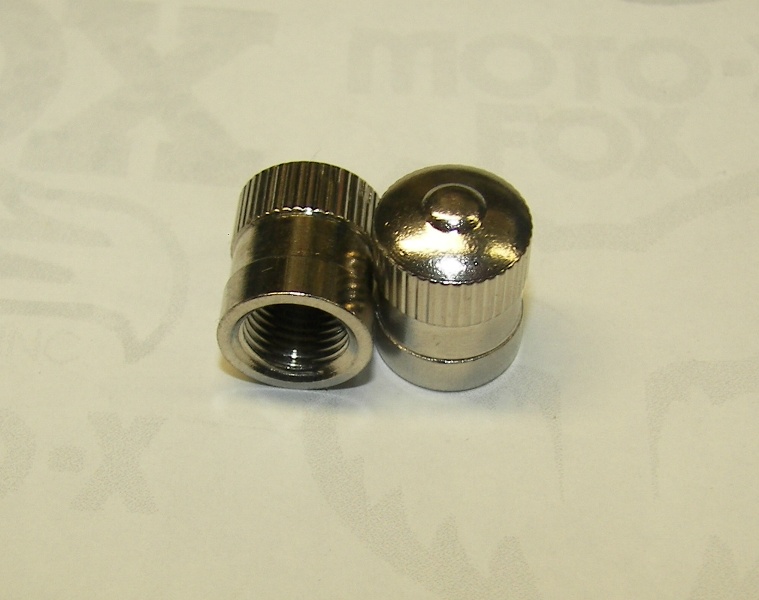

Nickel Plated Air Cap, similar to original in appearance but wall is thicker, long skirt for easy threading, o-ring seal, measures 0.559" long by 0.423" O.D.,  #909-058 $0.70 each
