THOR LAWSON'S
VINTAGE and EVOLUTION SUSPENSION PRODUCTS

FOX FACTORY SHOX PARTS
(Introduced in 1979)

Pressure: 200 psi, Oil: 5wt fork or shock fluid, reservoir models are filled to capacity with shafts fully extended, non-reservoir see manual for levels, height varies by shock length.  Body O.D. is app. 1.630".

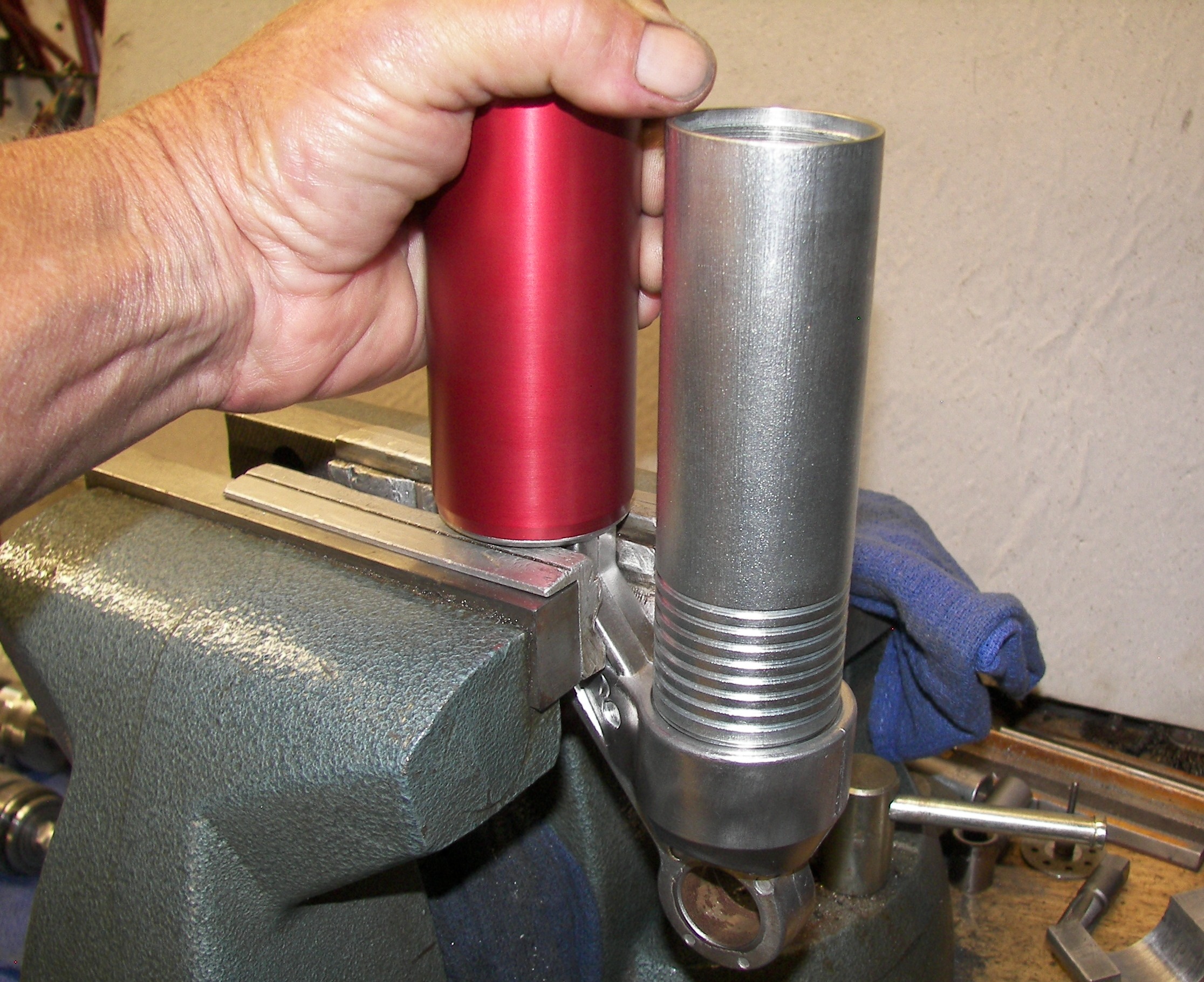

Warning: When servicing the Piggybacks it is critical that the body is held correctly or it will be damaged, replacements do not exist at this time.

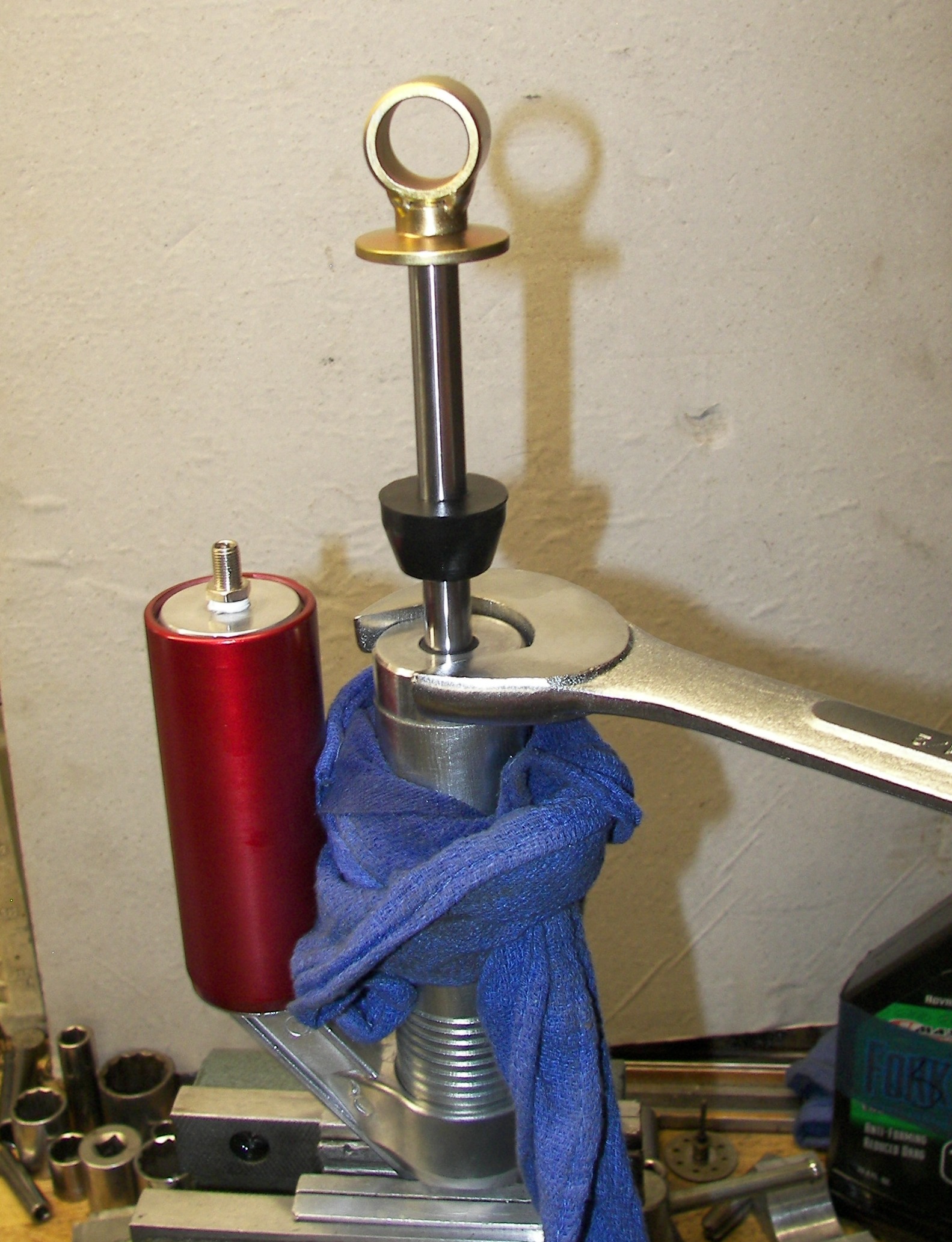

Removing and Installing SealHead, Shox body is clamped at the mount.
Offset 1-1/2" wrench makes it easier to turn head 180 degrees without hitting reservoir.


ESP is an authorized vendor of Fox vintage decals that are no longer in production.  The Fox Head and Fox Tail are registered trade marks of Fox Head Inc and Fox Racing Inc.  Use, copy, sale, reproduction or publication in any form whether by decals, manuals, apparel or any other products without written permission of Fox Head Inc and Fox Racing Inc is forbidden by law and may lead to legal action.

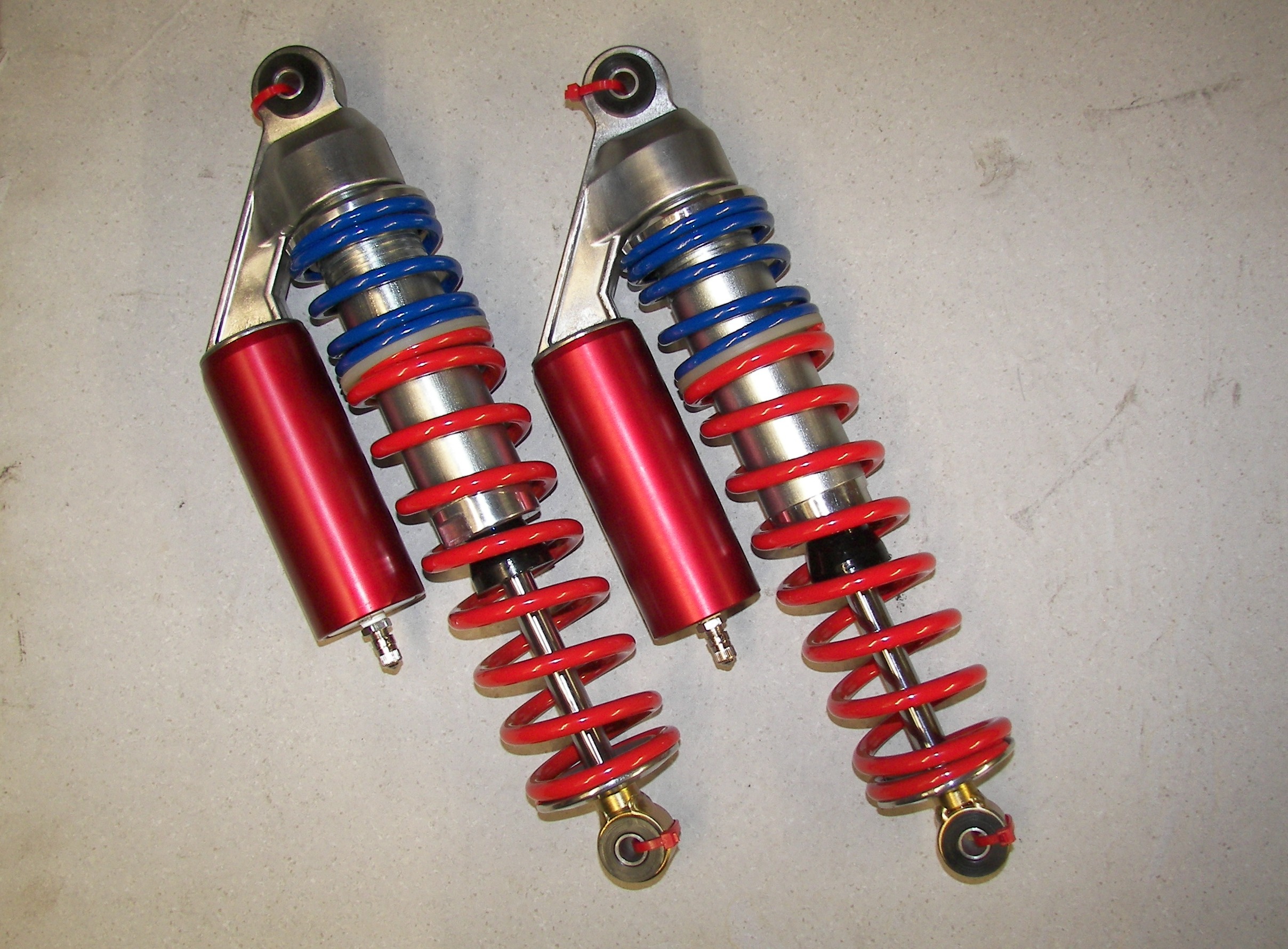

SOLD Fox Factory Shoxs Piggyback, totally rebuilt and refinished with new shafts, mechanically perfect and near excellent overall appearance with a little rub on the reservoir cylinders, includes 8 or 10mm mount bushings, manual, medium soft small springs and firm main springs, #12890


Fox Factory Shox Manual, for Reservoir and Emulsion shock, scanned & printed from original, #95-0320 $13

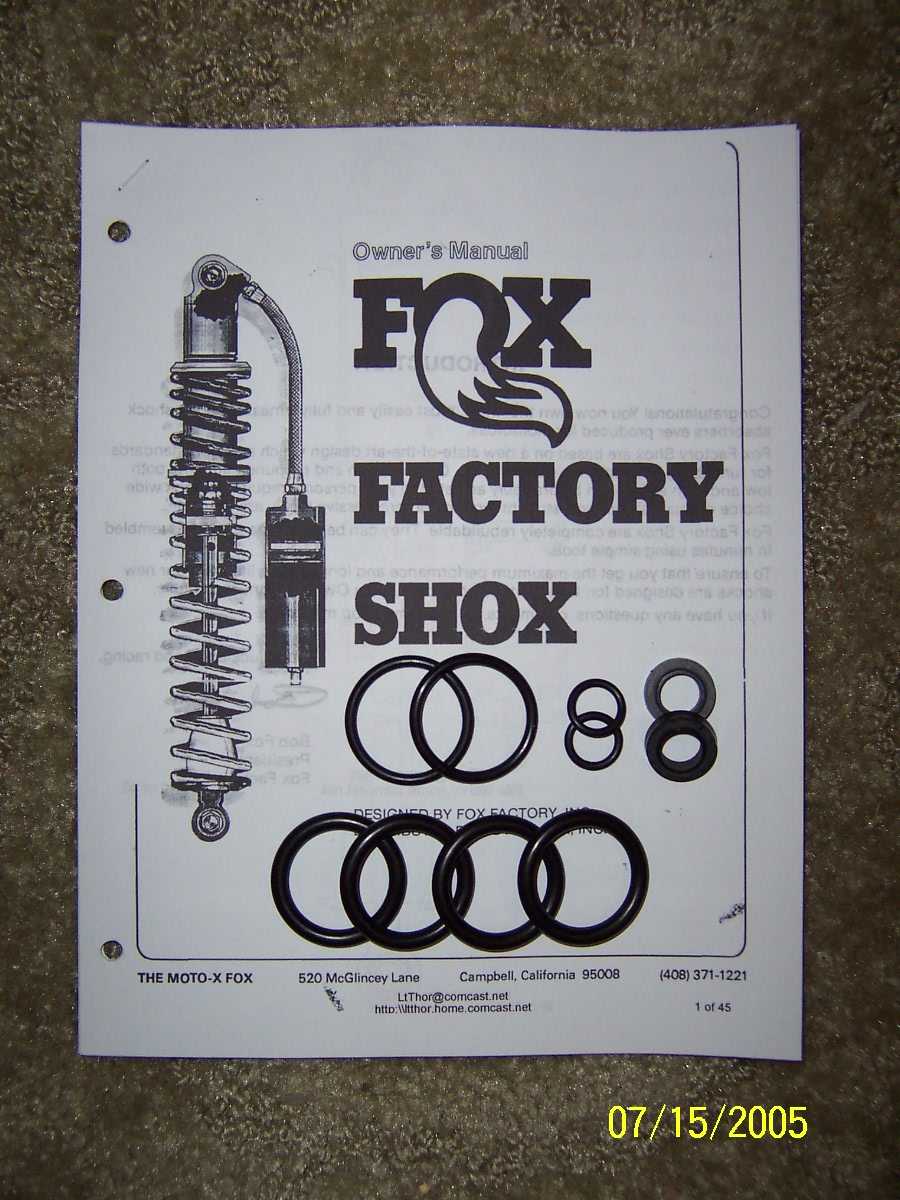

FOX FACTORY SHOX REBUILD PACKAGE, Remote, Piggyback, and Non-Reservoir - includes Seal Set, Decal Set, and the Manual at 50% off.   #909-310A,  $50.50


FOX FACTORY SHOX SEAL KIT, Remote, Piggyback Reservoir, and Non-Reservoir - Complete Set for a pair with aluminum or bronze (sits 9/16" above body, there is also a 1/4" tall head which I do not have wipers for at this time), sealhead, includes 2 Wipers, 2 Shaft Bearing Inner O-rings, 2 Shaft Bearing Outer O-rings, 2 Main Piston O-rings (goes underneath ring, not used on all models), 2 Reservoir Piston O-rings, 2 Reservoir Cap O-rings.   #95-9000,  $29.00


Note on shafts, measure the actual length without jet to ensure ordering the correct size.  Actual length of shock is not a good indicator of shaft length due to use of extended eyelets and/or internal spacers.  Sealhead bearing insert should be replaced whenever installing new shafts.  For 13" and 13-1/2" shafts, measure overall length without jet to closest 1/16", or millimeter, and I can turn down to the desired length.

Factory SHOX SHAFT, fits 14-1/4", 14-1/2", app. length w/o jet is 8-1/8" (206mm), #95-1201 $80.00 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

Factory SHOX SHAFT, fits 14-3/4", 15", app. length w/o jet is 8-3/8" (211mm), #95-1202 $80.00 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

Factory SHOX SHAFT, fits 15-1/4", 15-1/2", app. length w/o jet is 8-5/8" (219mm), #95-1203 $80.00 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

Factory SHOX SHAFT, fits 15-3/4", 16", app. length w/o jet is 8-7/8" (225mm), #95-1204 $80.00 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

Factory SHOX SHAFT, fits 17", 17-1/2", app. length w/o jet is 9-1/4" (235mm), #95-1205 $80.00 each  CURRENTLY ON BACKORDER.  Expected around 5/1/8/17.

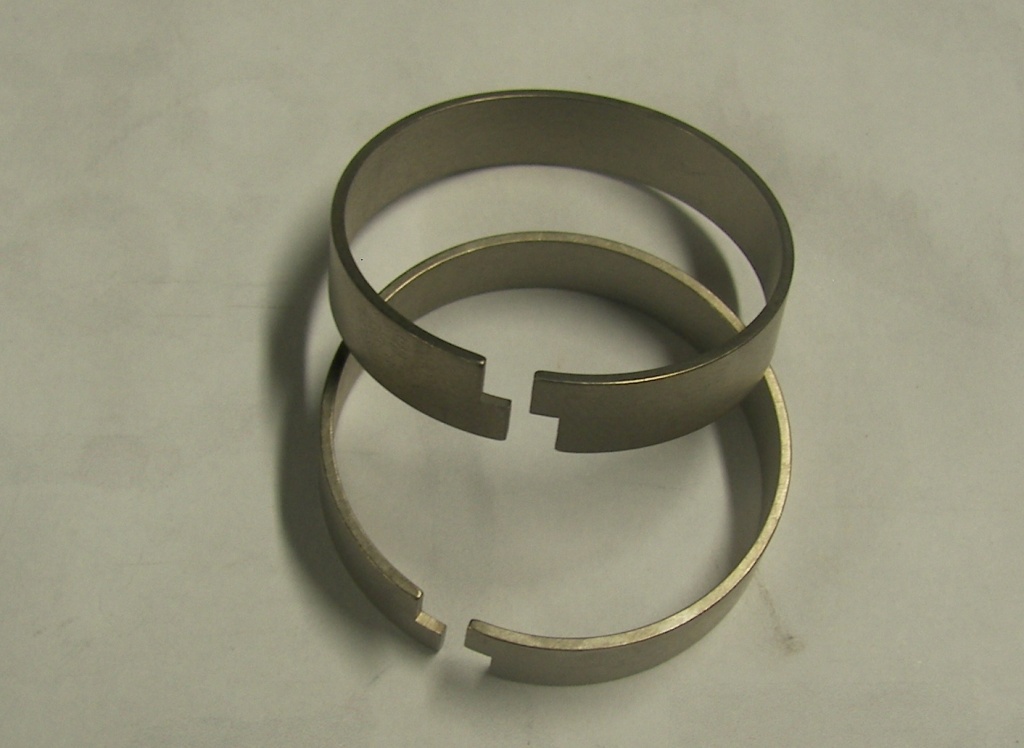

Fox Factory SHOX PISTON RING, coated cast iron ring with step cut, fits main cylinder piston that is grooved for o-ring expander usually found in off-road versions, early pistons without the o-ring groove and road versions will need to be machined to upgrade, shop charge $30 for pair, made slightly over size for cylinders that have been honed, will require slight filing or Dremel cutting of ring ends to custom fit. #95-0120 $25.00 each


Fox Factory SHOX SEALHEAD BEARING, for aluminum sealheads, bearing may be pressed into an aluminum carrier which is pressed into the bottom of the head, heat head and then pull out with small internal bearing puller or you can mail heads, shop charge is $10 per set, #909-269 $10 each

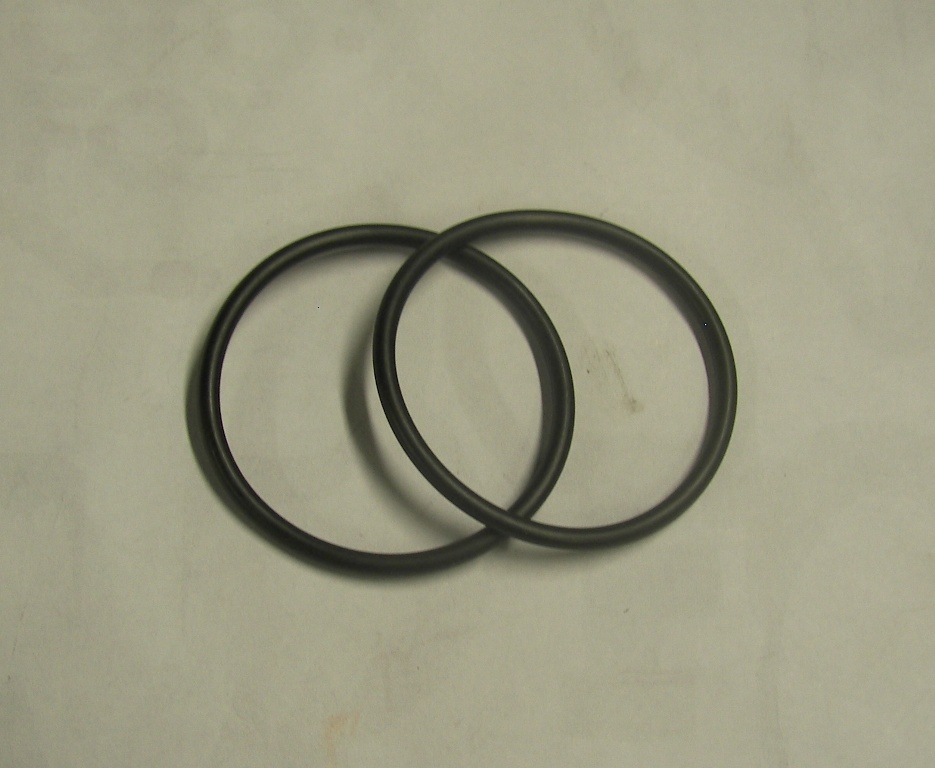

Fox Factory SHOX Piggyback reservoir o-rings, not in seal kit, needed if you remove the reservoir cylinder from the body, should only be removed with the proper tools and technique, DO NOT attempt removal otherwise.  #909-329 $2.00 pair

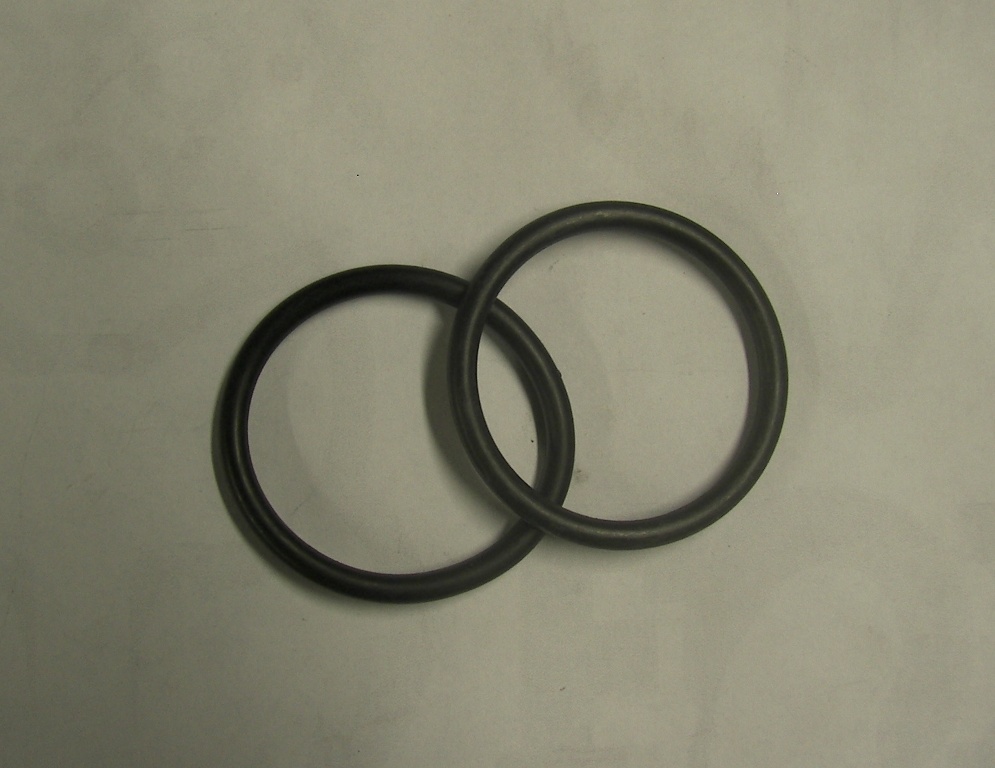

Fox Factory SHOX MAIN CYLINDER o-rings, not in seal kit, needed if you remove the main cylinder from the body, should only be removed with the proper tools and technique, DO NOT attempt removal otherwise.  #909-360 $2.00 pair


NEW!!! Spring Retainer, Eyelet, high strength 7075 Aluminum, #95-0190-7075 $27 each


NEW!!! Spring Retainer, Body, high strength 7075 Aluminum, #95-0170-7075 $23 each


NEW!!! Spring Retainer, Eyelet, 6061 Aluminum for custom color anodizing, #95-0190-6061 $24 each


NEW!!! Spring Retainer, Body, 6061 Aluminum for custom color anodizing, #95-0170-6061 $20 each


FOX FACTORY RESERVOIR SHOX STICKERS, for Off-Road 4-1/2"+ reservoirs, Set of 2, #VF-101 $15 set


Fox Factory Decal, 3" x 2-1/4" for road reservoirs less than 4-1/2" in length, D-110..... $10.00 set


Fox Factory Large Decal, 4-3/8" x 3-1/4" for road reservoirs less than 4-1/2", D-110-LG..... $12.00 set



FTC and FFS Reservoir Sticker

NEW!!! FoxTail with Border for Twin-Clicker and Factory Shox Reservoir, 2-1/2"x2", D-871..... $6.00 each


FTC and FFS Reservoir Sticker

NEW!!! Fox Factory Shox Yellow Reservoir , D-805..... $12.00 set

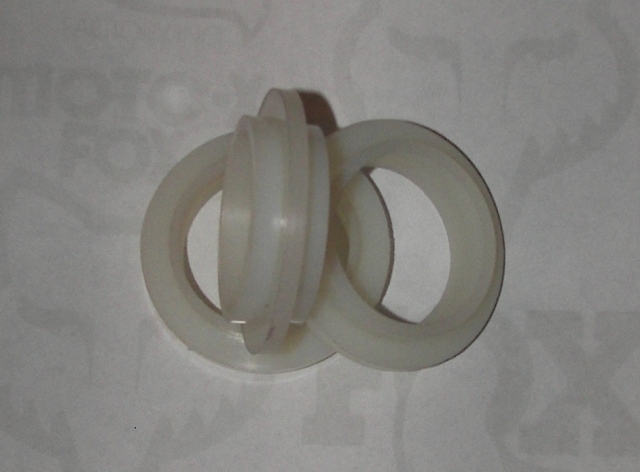

Fox Factory SHOX NYLON SPRING GUIDE, #95-0180 $13 each



Fox Factory SHOX CROSSOVER SPACER SET, , used to tune transition point of when springs go from the soft shorts to mains and to prevent coil binding of shorts, 2x 1.100", 2x 0.500", 4x 0.250", 2x 0.125", #909-324 $65 set Allow 2-3 days in case I have to machine a set.

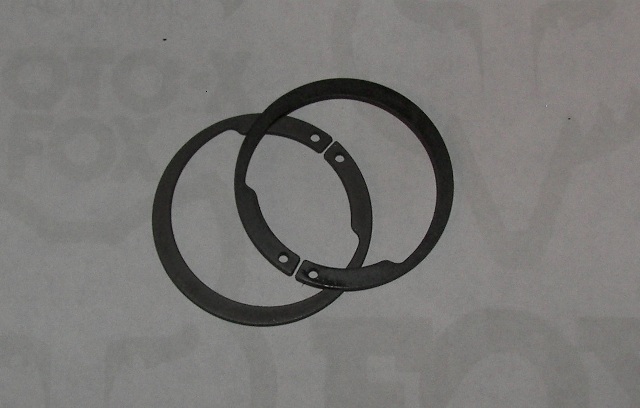

Fox Factory SHOX BODY SNAP RING, #95-0160 $7.50 each



Size:
1/8 NPT Stainless Steel Braided Hose w/ brass fittings, 12", 14", 16", 18". Fox #99-5090    Custom lengths and Stainless Steel fittings available by special order within 2-3 weeks.


NEW!!! Plastic Wrap for 1/8" Lines, ID= 5/16", it takes 15" to wrap a 12" line, order 1 foot more then actual length needed, #909-342 $1.50 per foot


Fox Factory Shox Elbow, 45 degree, #909-341,  $7.50 each


Fox Factory Shox Elbow, 90 degree,  #99-5080  $4.75 each

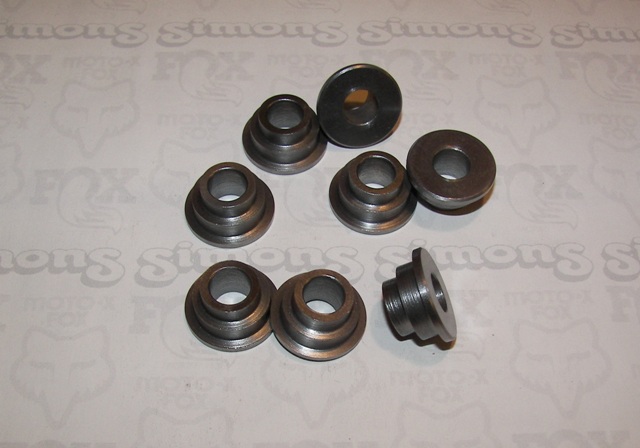

Fox Factory Shox, 8 mm Split Reducer Bushing Set, Set of 8, (Fox #95-0030) #909-271 $52 set

Fox Factory Shox, 8 mm Split Reducer Bushing, individual, #909-272 $7 each

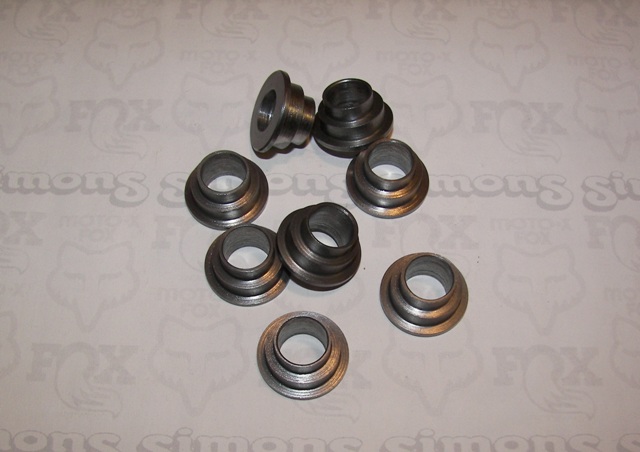

Fox Factory Shox, 10 mm Split Reducer Bushing Set, (Fox #95-0031) Set of 8, #909-273 $52 set

Fox Factory Shox, 10 mm Split Reducer Bushing, individual, #909-274 $7 each

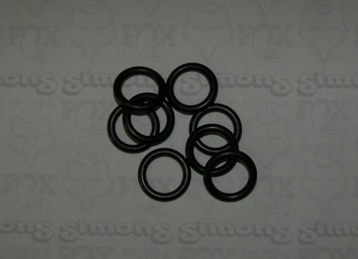

Fox Factory Shox, Shock Mount O-Ring Set, Set of 8, #909-350 $4 set

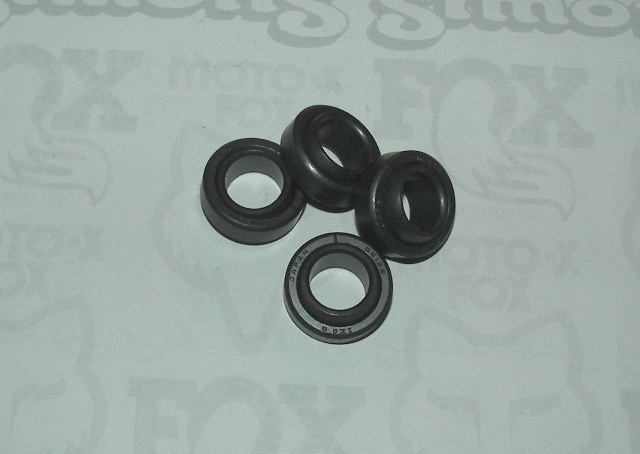

Fox Factory Shox Stainless Steel Spherical Bearing, low maintenance, (Fox #95-0020) #909-267,  $30 each



Fox Factory Shox Spherical Bearing, black oxide finish, (Fox #95-0020) #909-270,  $13 each



NEW!!!  Reservoir Mount Rubber, size Small, #919-324 $12 each, (NOTE: 2x per reservoir cylinder required for stable installation, order 4x for complete set, hose clamps not included.)


Reservoir Mount Rubbers, size Large, hose clamps not included, Set of 4,  #909-325-4 $64 set

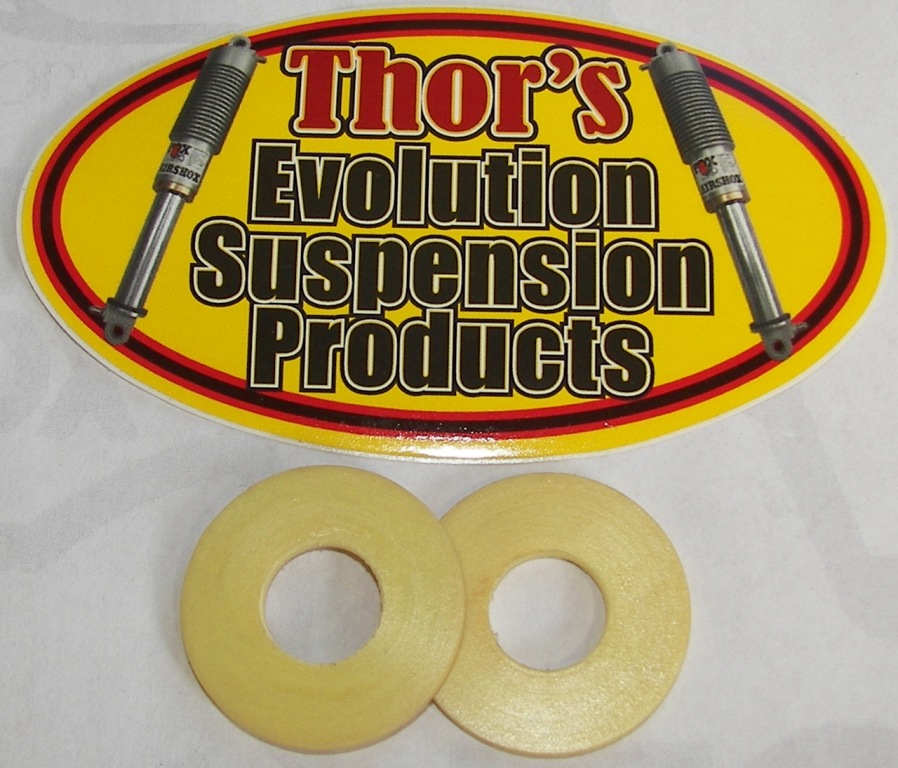

Fox Factory Shox Bumper Rings, Set of 2,  #95-0050 $6 set


Fox Factory Shox Bottom Out Bumpers for Off-Road, 1-1/2", Set of 2,  #909-381 $50 set


Bottom Out Bumpers for Street, 3/4" hgt., Set of 2, #909-489 $28 set



Bottom Out Bumpers for Street, 1-1/4" hgt., Set of 2, #909-487 $36 set

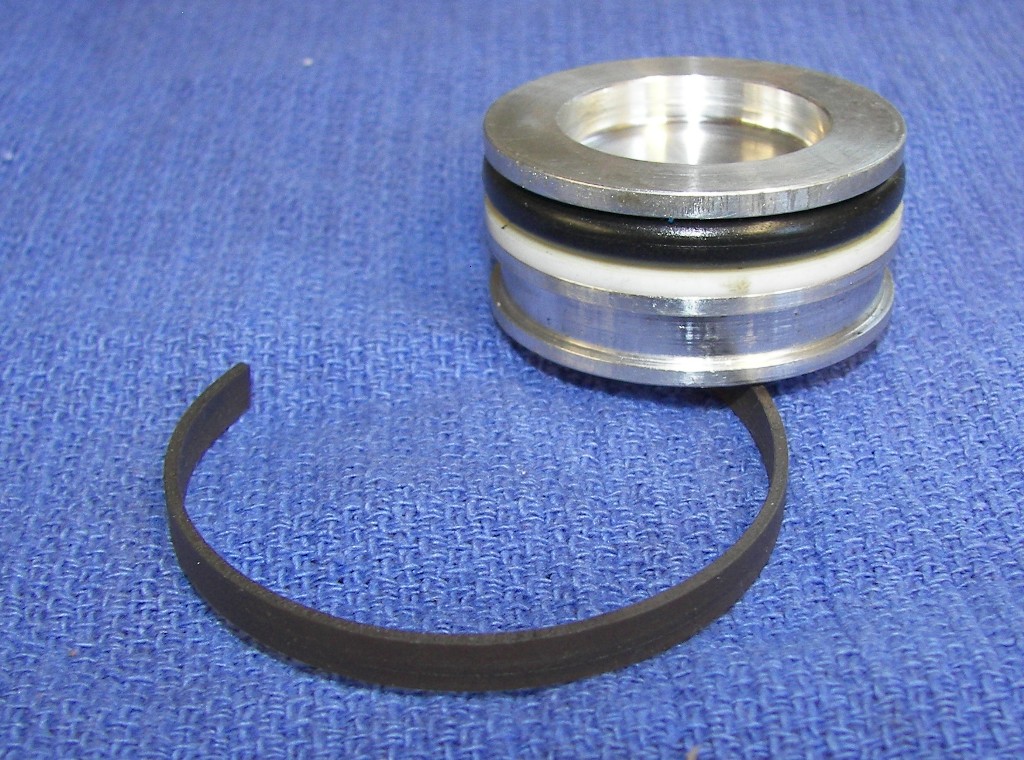

RESERVOIR PISTON RING SET, for pancake type piston, narrow 0.200" (5mm) width, thickness of new ring 0.049-0.050" (1.26-1.28mm), Set of 2, (Fox #95-0230) #999-377 $24 set

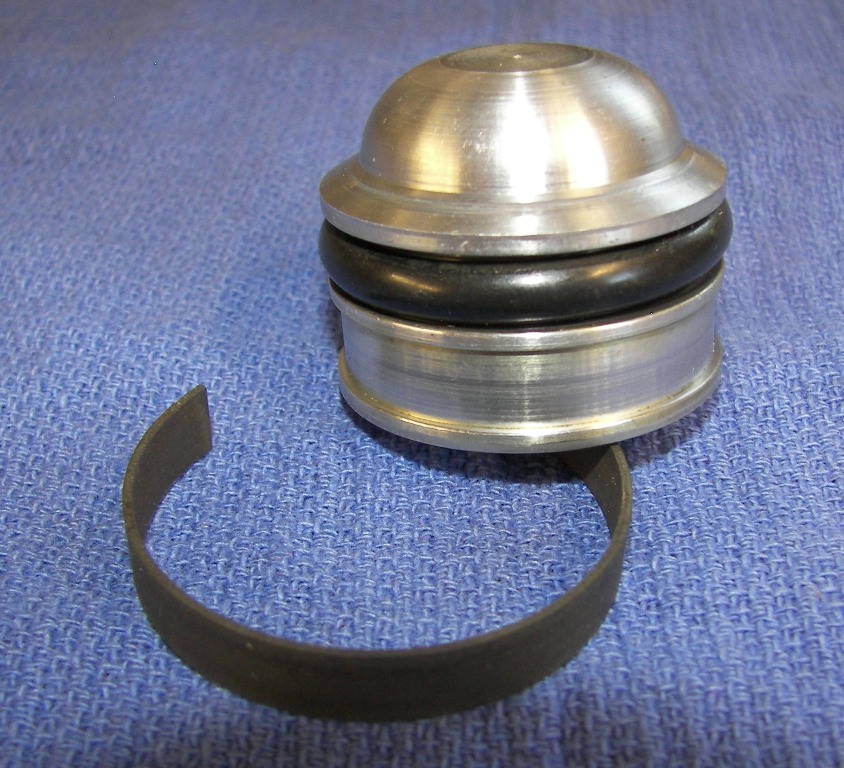

RESERVOIR PISTON RING SET, for dome type piston, wide 0.300" (7.6mm) width, thickness of new ring 0.038-0.039" (1.0-1.02mm), Set of 2, (Fox #95-0231) #999-378 $24 set

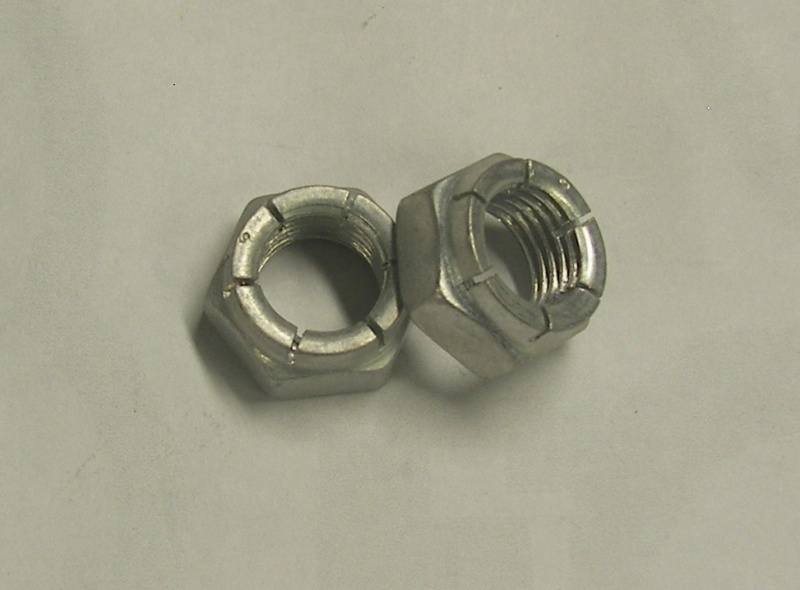

Fox Factory Shaft Locknut, cad plated, Set of 2, #95-0150 $7 set


Size:
Factory Shox Jets, .052" to .120", select size in window, #95-1xxx, $20 pair
Air Valves with Standard Valve Core, Nickel-Plated, 200 psi sustained, 300 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be in the Tool section,  #99-0280,  $4.50 each

Air Valves with High Pressure Valve Core, Nickel-Plated, 400 psi sustained, 500 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be in the Tool section,  #909-061,  $5.80 each

Standard Air Valve Cores, 60 psi opening, 200 psi sustained, 300 psi peak,  #909-054-2 2 for $1.90



Hi-Pressure Air Valve Cores for All Fox Shox's, Aircraft grade, recommended for Factory Shoxs and AirShoxs set at  200 psi plus, 70 psi opening, 400 psi sustained, 500 psi peak,  #909-053-22 for $4.50


Original Style Nickel Plated Air Caps, long skirt for easy threading, o-ring seal, measures 0.513" long by 0.350" O.D.,  #909-056-2 2 for $1.40
Nickel Plated Air Caps, similar to original in appearance but wall is thicker, long skirt for easy threading, o-ring seal, measures 0.559" long by 0.423" O.D.,  #909-058-2 2 for $1.40
Chrome Hex Air Caps, fiber ring seal #909-055-2 2 for $1
