FOX HARLEY-DAVIDSON & VICTORY SHOX PARTS

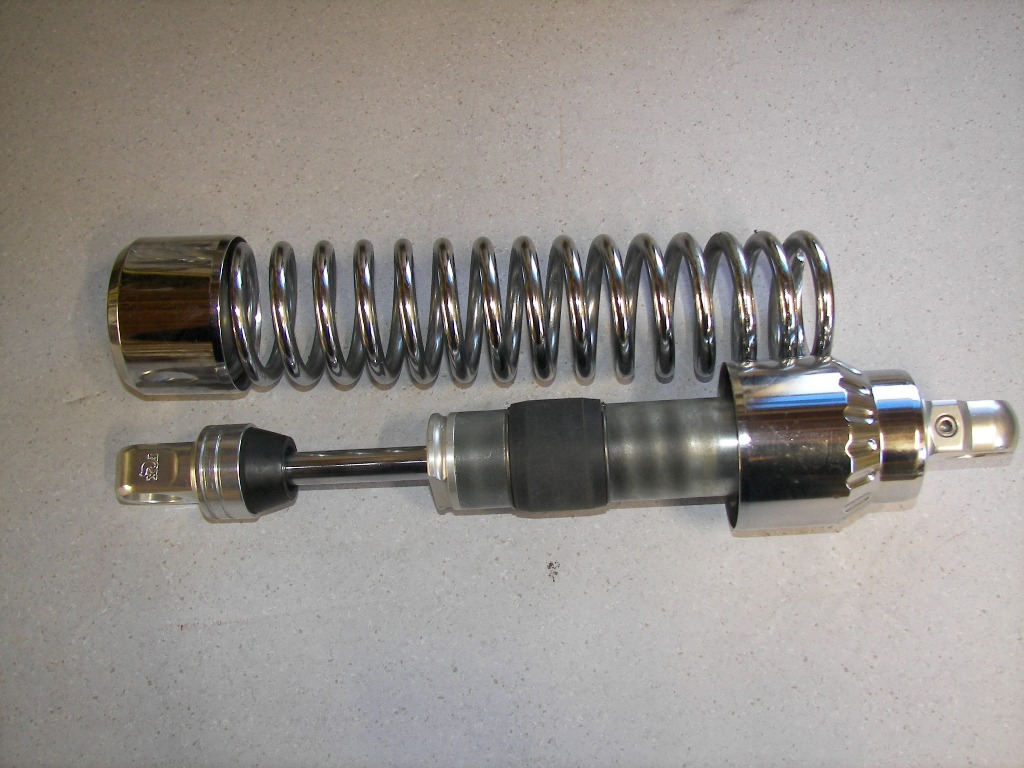

Rebuildable Fox H-D ShoxsAllen Plug Charging PortFox Logo

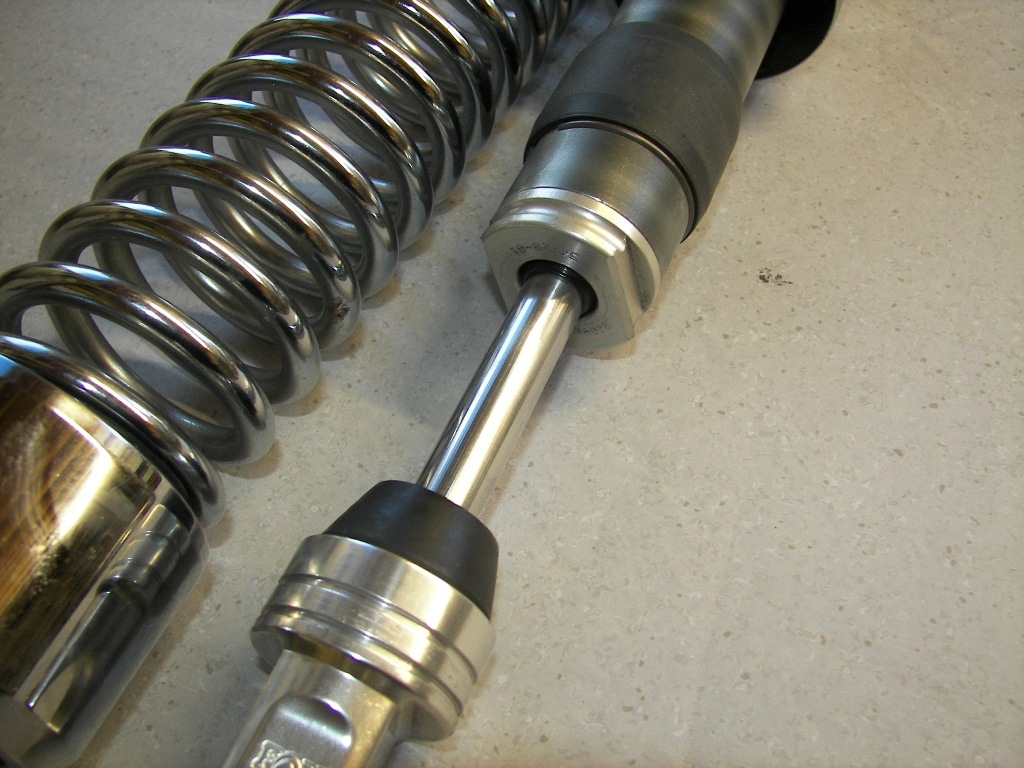

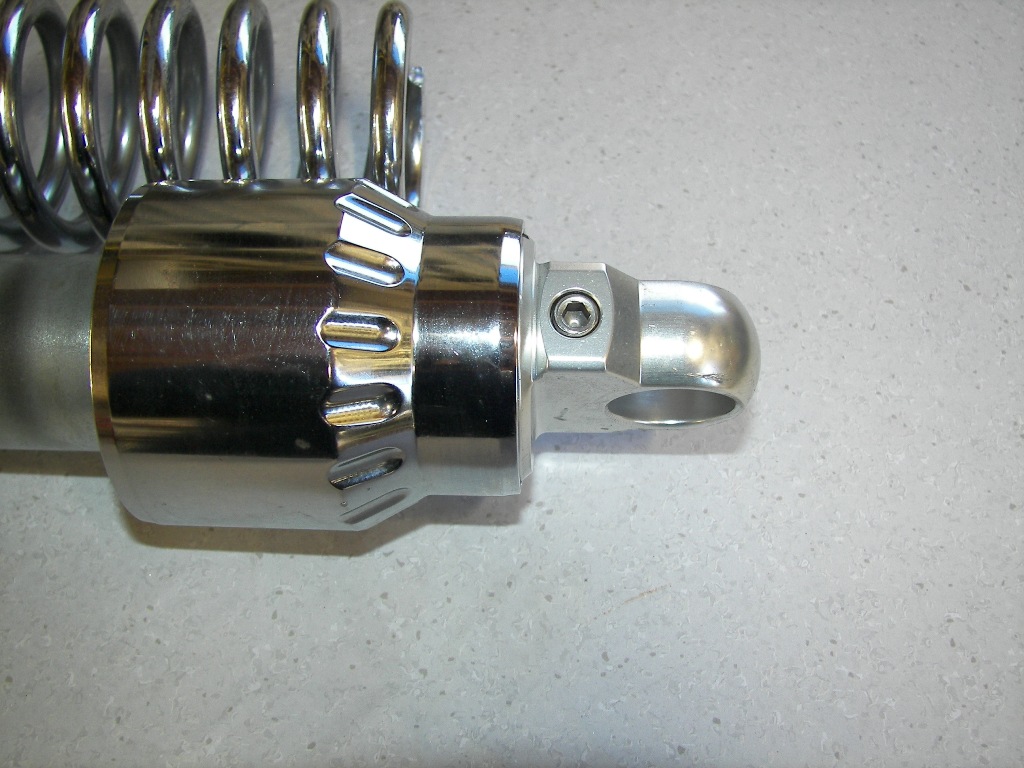

Identifying features of Rebuildable H-D Shoxs, note the allen plug for charging port and wrench flats on sealhead.

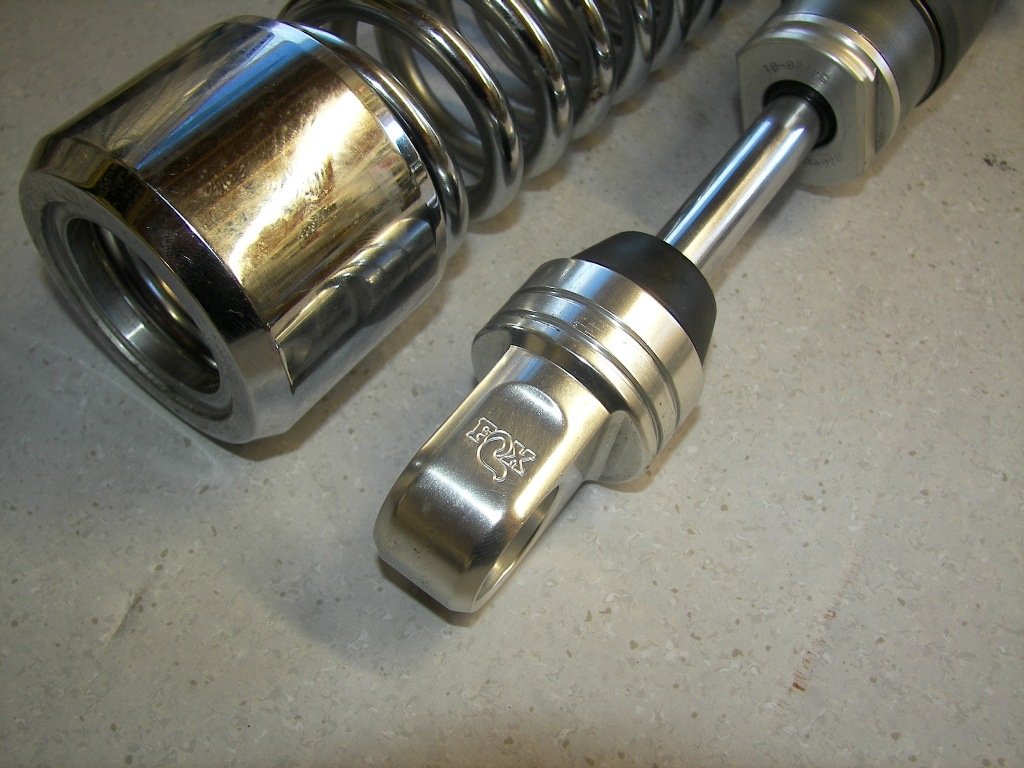

Also Fox logo on one mount, HD logo on the other.

Fox made non-rebuildable and rebuildable Shoxs for Harley-Davidson, above photos is the rebuildable version.
The model range I have serviced goes from 1998 to 2001, plus a 76 custom, recorded lengths were 11-3/4".

Pressure: 100 to 200 psi, Oil: 5wt fork or shock fluid, filled to capacity, about 65-70cc, has internal reservoir.  Bottom cap
must be removed to set piston depth and bleed air.  Depth of piston from bottom end of cylinder is 1.170".
Charging port may be syringe type plug or a recessed Schrader Valve.


FOX HARLEY-DAVIDSON SHOX SEAL KIT, includes all internal soft parts for pair of 1/2" shaft Shoxs, manual not available at this time, #909-399,  $33.00


FOX VICTORY SHOX SEAL KIT, includes all internal soft parts for single 1/2" shaft Shox, manual not available at this time, #919-900,  $33.00

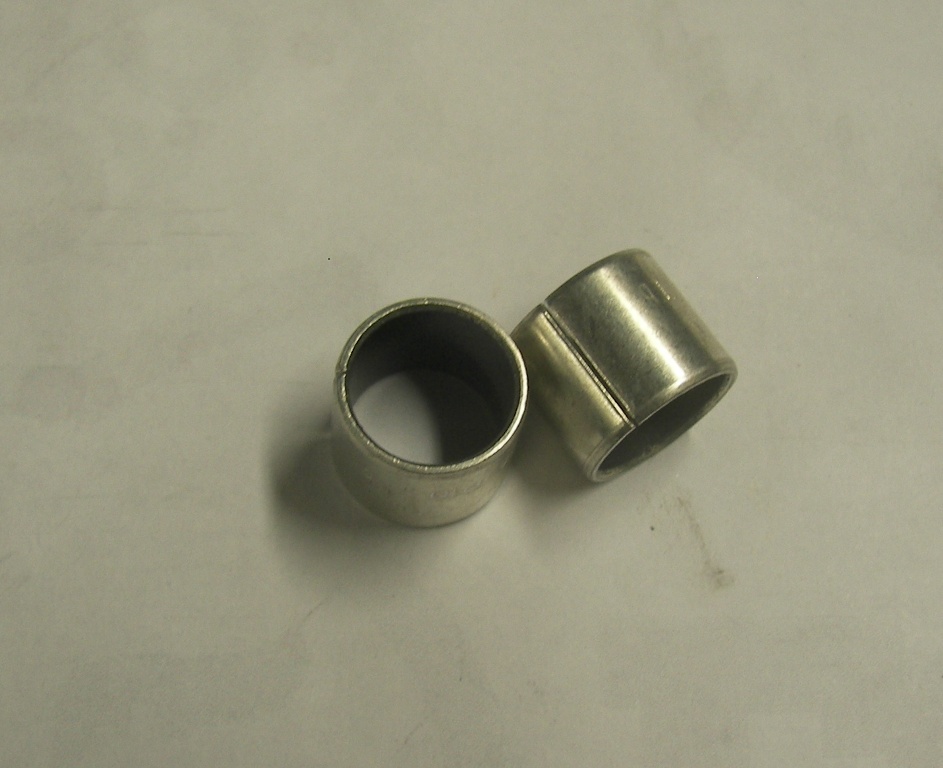

SEALHEAD BEARING,  #909-269 $10 each

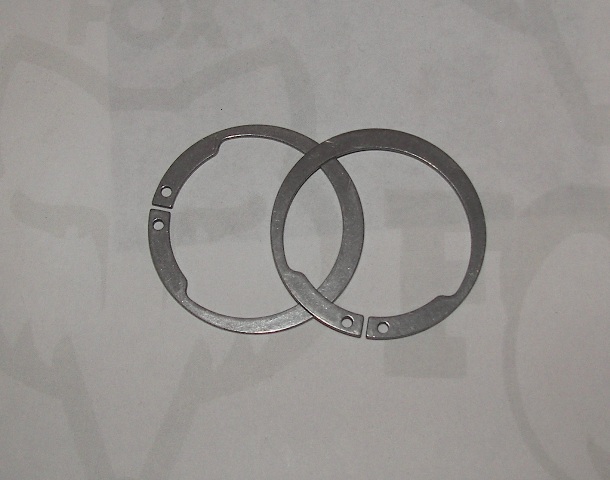

Spring Cap Snap Ring, stainless steel,  Set of 2, #38-0210-SS $15.00 pair Out of Stock


Spring Cap Snap Ring, black phosphate finish,  Set of 2, #38-0210-BP $6.00 pair

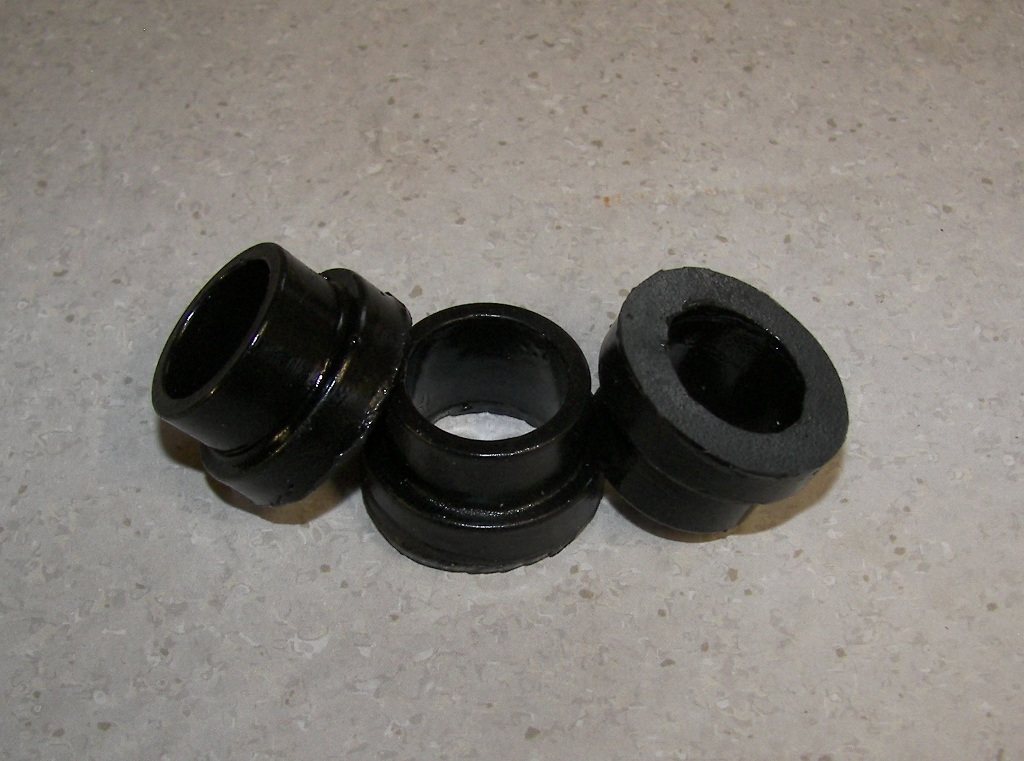

Mount Rubbers, Set of 8, #909-397 $45.00 set of 8


Mount Rubbers, each, #909-398 $7.00 each

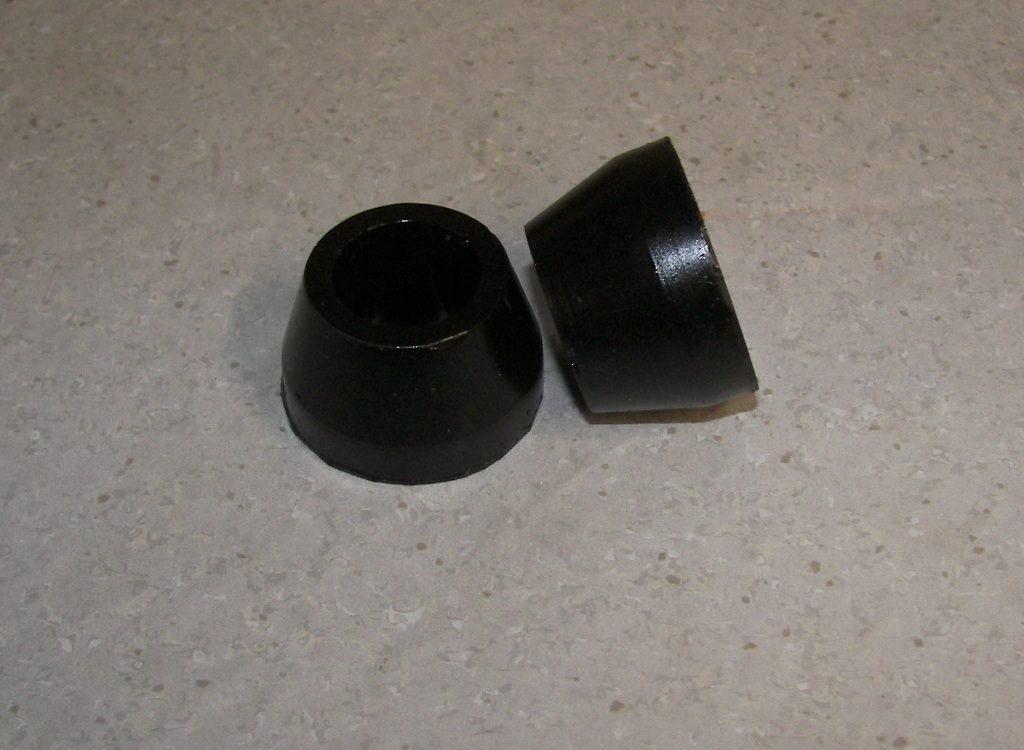

Bottom Out Bumpers, 3/4" hgt., Set of 2, #909-402 $40 pair
