FOX MONO AIRSHOCK PARTS
77-78 Shock has fins running the circumference of the body, standard length eye to eye center app. 27-1/2", can be varied.
Oil Amount by length configuration: 11" w/2 spacers 529cc, 12" w/1 spacer 533cc, 13" no spacer 537cc.
77-78 Pressure Settings.

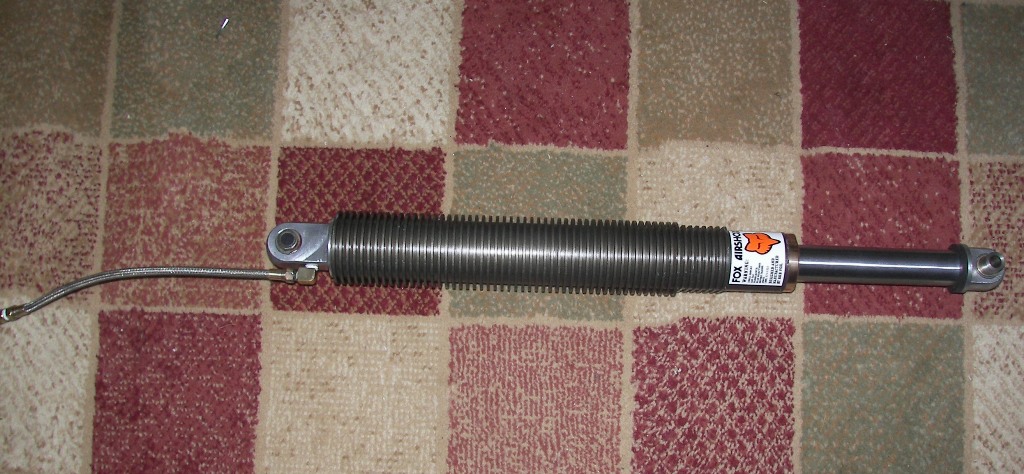

77-78 Fox MonoShock
79 has fins running length of body, standard length eye to eye center app. 25-1/5", can be varied.
Oil Amount by length configuration: 11" w/2 spacers 434cc, 12" w/1 spacer 438cc, 13" no spacer 442cc.
79 Pressure Settings.

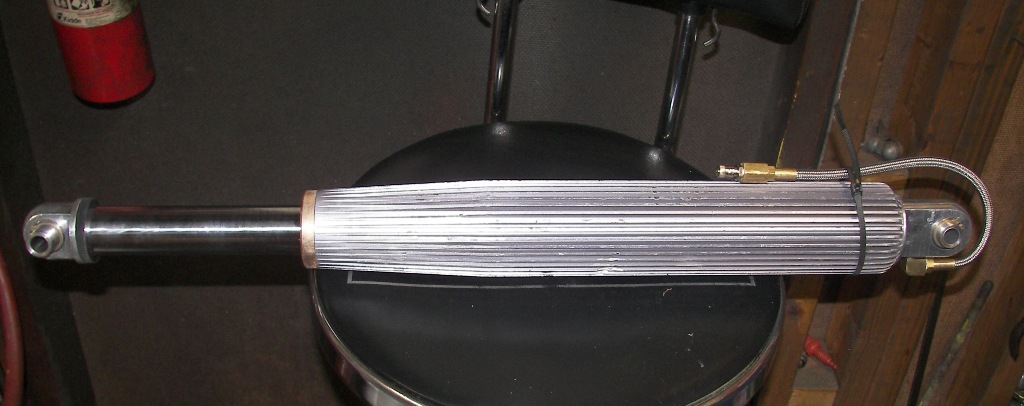

79 Fox MonoShock

The #1 complaint I get on the Mono is the rebound being to quick when setup for heavy riders (180+ lbs), problem
can be solved with a stiffer rebound spring for high speed rebound and/or smaller jet for slow speed rebound.

Fox Mono AirShock Owners Manual, for 77-78 models, plus, includes addendum for 79 model, 26 pages, covers setup, servicing, tuning, pressure chart, parts diagram and list, #99-5310,  $8.50

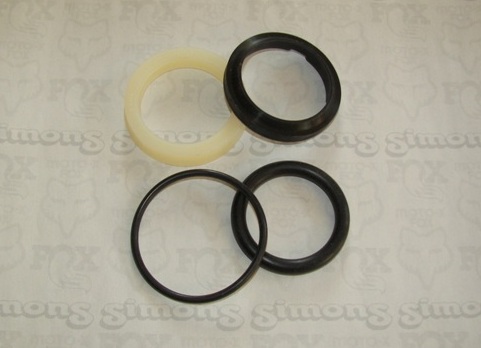

FOX MONO AIRSHOCK SEAL KIT, includes seal, wiper, external square bumper ring, top cap, bottom cap, and bearing o-rings, #99-9500,  $28.00





FMS SQUARE EXTERNAL BUMPER RING - (included in seal kit) give your restoration that original look with square external bumper rings.  Will stretch enough to slip over the lower mount so that replacing damaged bumper can be done without disassembling shock.  Tape or smooth off any sharp edges before installing.  #99-0140$3.25 each





FMS LOWER MOUNT to SHAFT O-RING, (included in seal kit) #99-9001$1.40 each





Fox MonoShock Piston Ring, replace your worn or broken ring before metal to metal contact and premature seal failure occurs, wear limit is 1.885".  Machined from wear resistant low friction Teflon PTFE.  #99-5250,  $20.00 each


Fox AirShox Rebound Spring, state if stiffer rate (4.4) is needed for heavy rider in Notes, (Fox #99-7540)  #909-818 $3.50 each



Fox MonoShock Jet, Available in .116" (firm +2), .120" (firm +1), .125" (std.), .128" (soft +1), .136" (soft +2).  Specify size desired in PayPal "Notes" section. (Fox #99-7###, #=size) #99-7116 $7.50 each



Fox MonoShock Ball Valve, #99-5270 $0.25 each

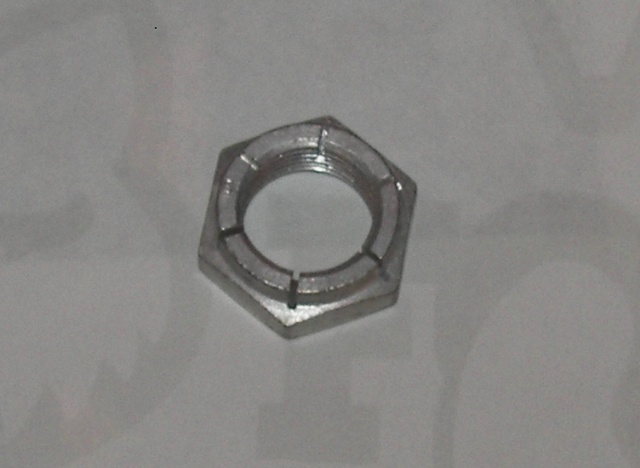

Fox Mono AirShock Shaft Locknut, steel, cadmium plated, Fox #99-5290 $10 each

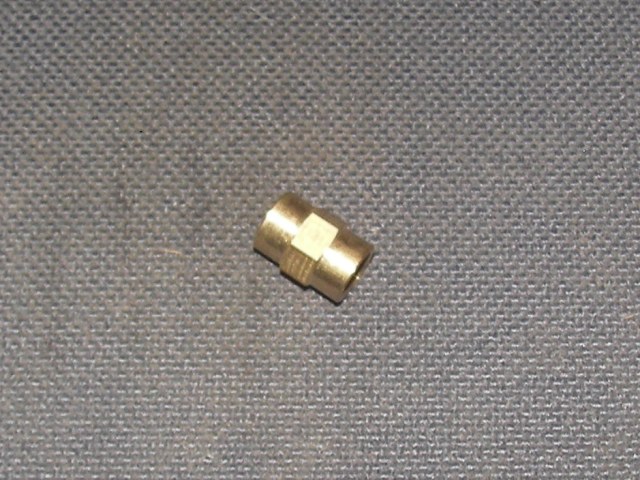

Fox Mono AirShock Coupling, connector to join line to air valve. #99-5100  $2.50 each

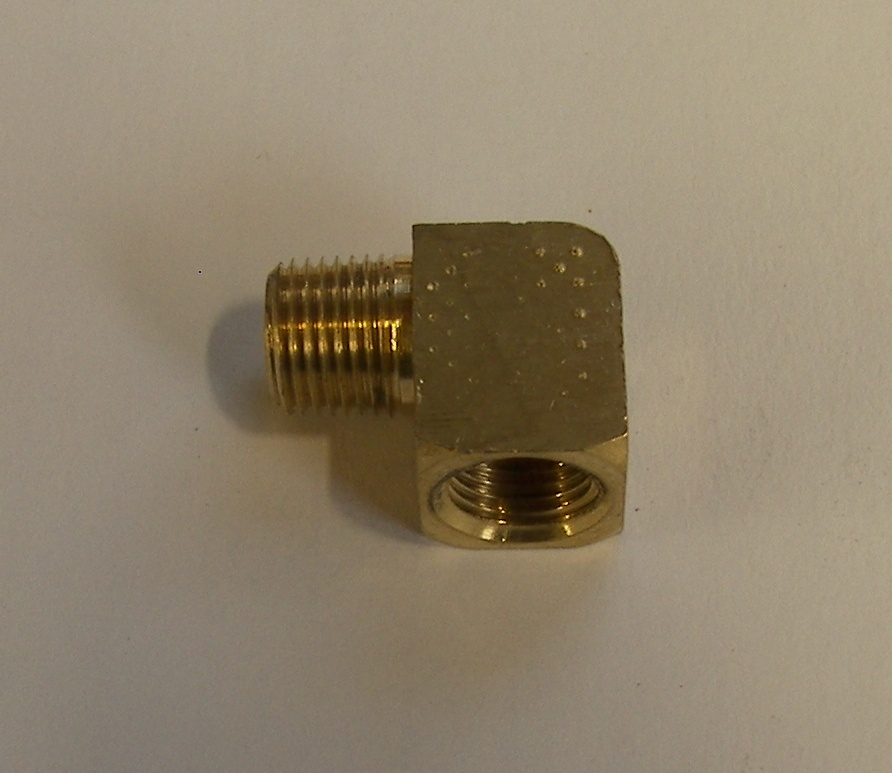

Fox Mono AirShock Elbow, 90 degree, top cap to air line. #99-5080  $4.75 each


Fox MONO AIRSHOCK line, 12" Stainless Steel Braided w/ brass fittings. Fox #99-5090  $40.00 each


Plastic Wrap for 1/8" Lines, ID= 5/16", it takes 15" to wrap a 12" line, order 1 foot more then actual length needed, #909-342 $1.50 per foot

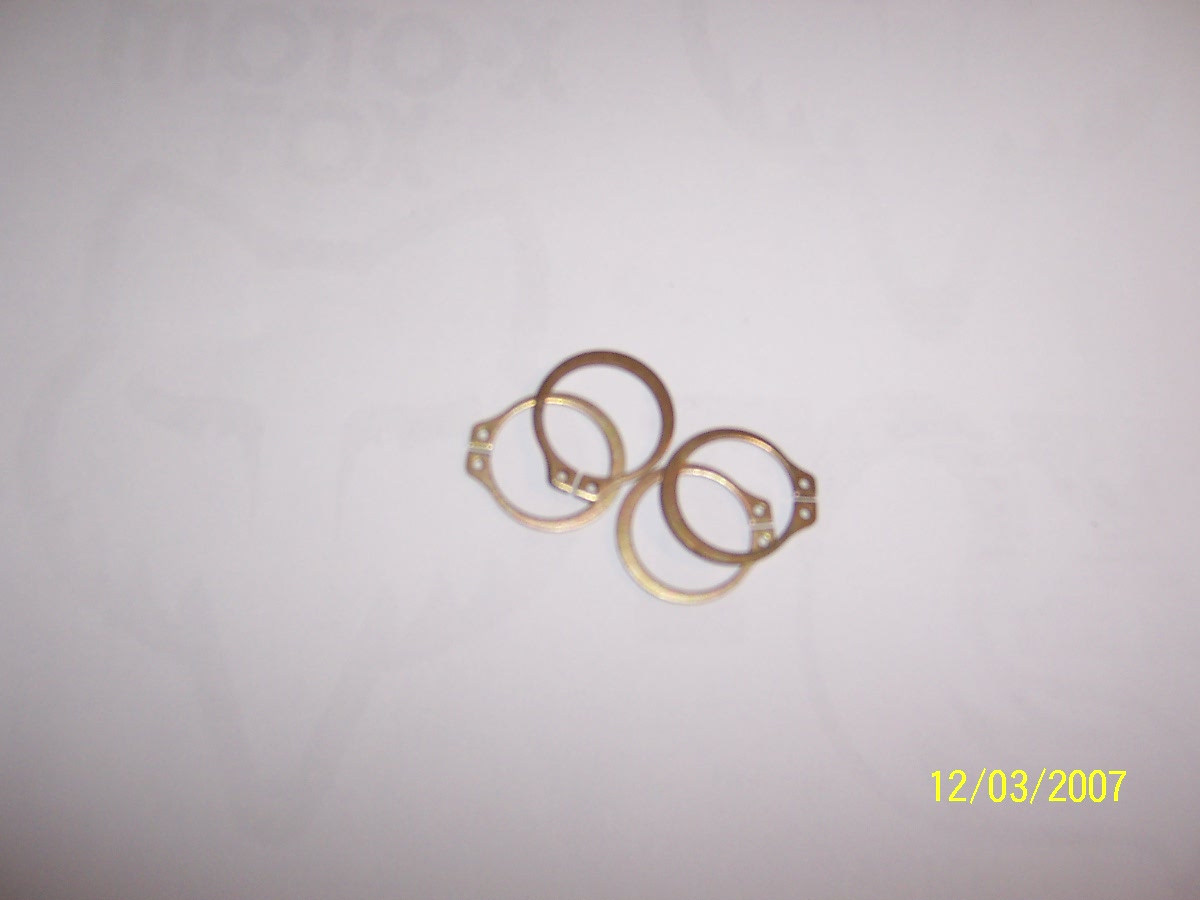

Fox Mono AirShock Bushing Snap Rings, zinc plated  #99-5150,  $2.00 set of 4

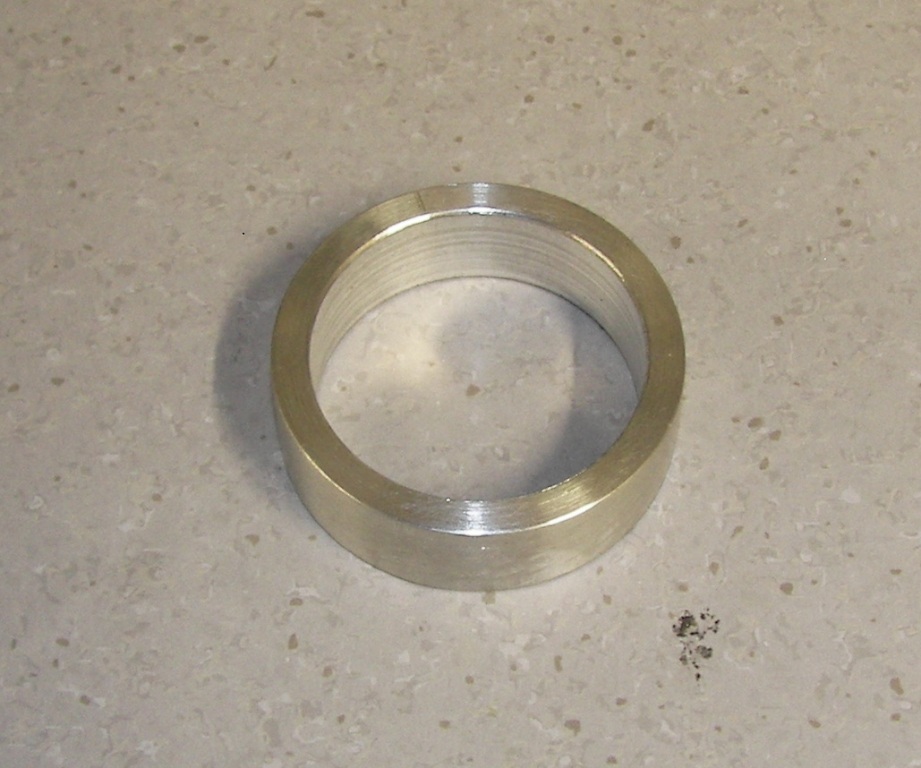

Fox Mono AirShock 1/2" Spring Spacer, aluminum  #99-5210,  $15 each


FOX MONO AIRSHOCK DECAL, #999-112 $6.00 each


Fox AirShox Stickers, Early Style with Fox Head, Set of 2, (Fox #99-5050) #999-115-2 $10 pair


Fox AirShox Stickers, Late Style with Fox Tail, Set of 2,  #999-114-2 $10 pair
Air Valve with Standard Core, Nickel-Plated, 200 psi sustained, 300 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be found in the Tool section  #99-0120,  $6.50 each

Air Valve with High Pressure Core, Nickel-Plated, 400 psi sustained, 500 psi peak, metal cap, always install with a fresh layer of plumbers tape which can be in the Tool section,  #909-061,  $10.50 each


Standard Air Valve Core, 60 psi opening, 200 psi sustained, 300 psi peak,  #909-054-1 0.95 each



Hi-Pressure Air Valve Core, Aircraft grade, 400 psi sustained, 500 psi peak,  #909-053-1$4.00 each

Original Style Nickel Plated Air Caps, long skirt for easy threading, o-ring seal, measures 0.513" long by 0.350" O.D.,  #909-056 $0.70 each


Nickel Plated Air Caps, similar to original in appearance but wall is thicker, long skirt for easy threading, o-ring seal, measures 0.559" long by 0.423" O.D.,  #909-058 $0.70 each  OUT of STOCK

Chrome Hex Air Cap, fiber ring seal,  #909-055-1 $0.50 each
